Fluke 2635A Totalizer Operation

2635A

Users Manual

2-32

Typical

Required

TRIg

ENTER

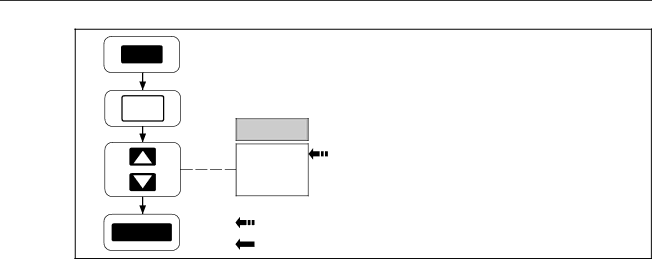

Selecting a Trigger Option. Press the SHIFT

key and then the MON key to access the trigger

option menu. Press the up/down arrow keys to

select either ALAr (Alarm) (Monitor-Alarm trigger),

On (On) (External trigger), or OFF (Off) (no

trigger option selected), then press the ENTER

key.

ALAr

On

OFF

SHIFT

MON

op31f.eps

Figure 2-19. Scan Triggering Options

Totalizer Operation

Perform the procedure in Figure 2-20 to use the totalizer feature. The totalizer count can

be monitored when the instrument is active or inactive. The totalizer is an internal

counter that sums contact closures or voltage transitions. Connection is at the rear panel

DIGITAL I/O connector, pins SUM and GROUND. A contact closure between SUM and

GROUND or a voltage transition applied to SUM (referenced to GROUND), will cause

the totalizer to advance by one count. The maximum count allowed is 65535 and the

maximum count rate is 5 kHz. Voltages trigger on a low-to-high transition at a nominal

threshold of +1.4 volts. A contact debounce feature is available when the instrument is

operated through a computer interface. (See Chapter 4, "Computer Operations.")
