Function description

The following table displays a list of all DDI functions. Available functions for each privilege level are marked with a check mark (ü).

		Privilege Level
Keypad Function	Read Only	Operate &	Cofigure &
		read only	operate
Drive control functions
Stop	ü	ü	ü
Start		ü	ü
Reset faults	ü	ü	ü
Change direction		ü	ü
Remote/Local		ü	ü
Jog		ü	ü
Speed Increment		ü	ü
Speed Decrement		ü	ü
Menu functions
Status button	ü	ü	ü
Menu button	ü	ü	ü
Navigation buttons (Arrows, Esc, Enter)	ü	ü	ü
Display Active Faults	ü	ü	ü
Display Fault History	ü	ü	ü
View Parameters	ü	ü	ü
Edit Parameters			ü
View Variables	ü	ü	ü
Wizards			ü
Adjust Screen Contrast	ü	ü	ü
Display Firmware Version	ü	ü	ü
Display Hardware Information	ü	ü	ü
Save Parameters to Backup			ü
Restore Parameters from Backup			ü
Compare Current Parameters to Backup	ü	ü	ü
View Overrides	ü	ü	ü

Note When changing DDI security configuration from the toolbox, first save the modified parameters to the drive. Then switch between the Menu and Status screens for the password and privilege level to update.

Language and Units Presentation

The presentation of the Innovation Series product in the Control System Toolbox and DDI (keypad) can be customized. The presentation can be configured using the following parameters:

•Language

•Display units

In regions in which English is not the primary language, the Innovation Series product provides a choice of two languages: English and the indigenous language. The presentation is in English if parameter Language is set to English. The presentation is in the indigenous language if Language is set to Native.Parameters and variables in the Innovation Series product can be displayed in different unit systems. The display units are chosen by parameter Display units.

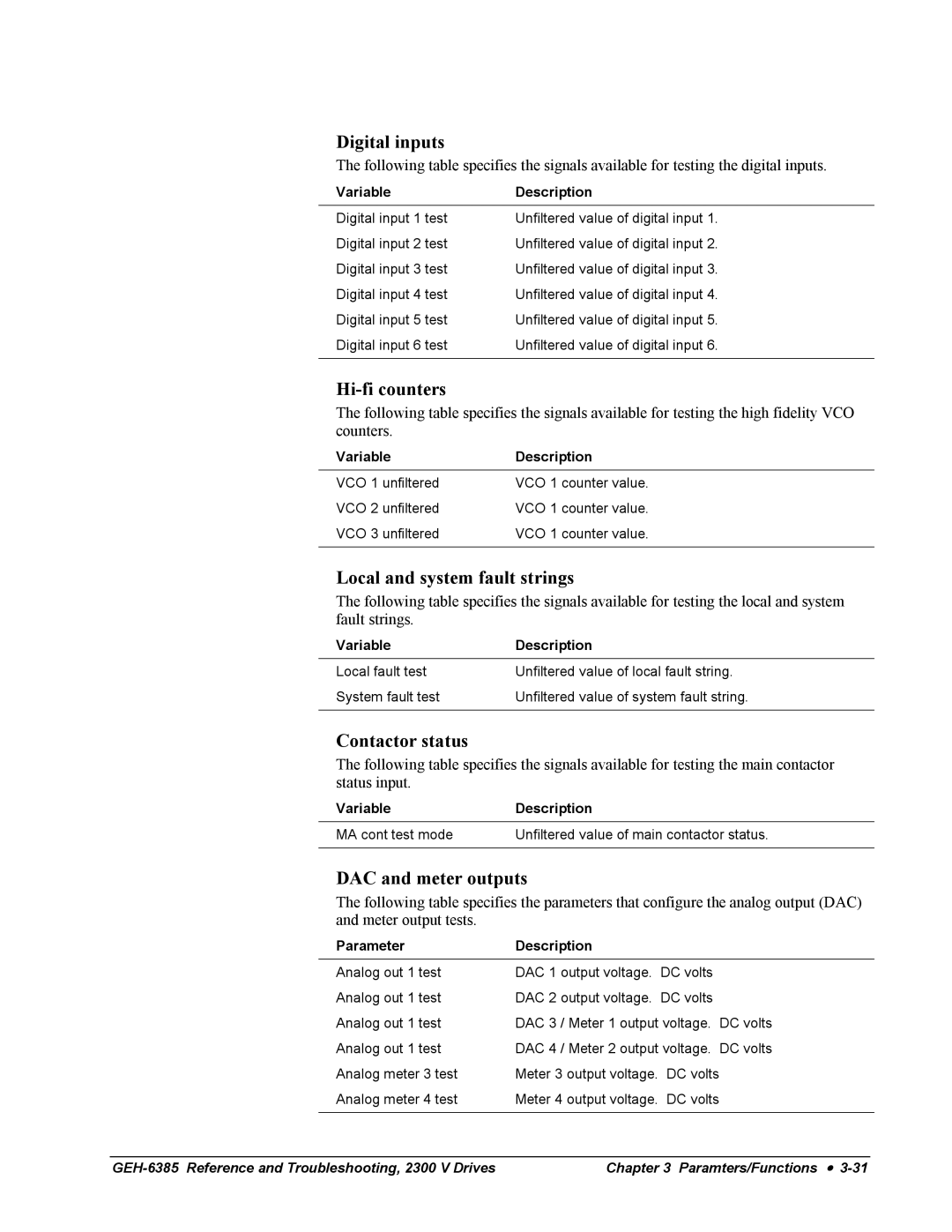

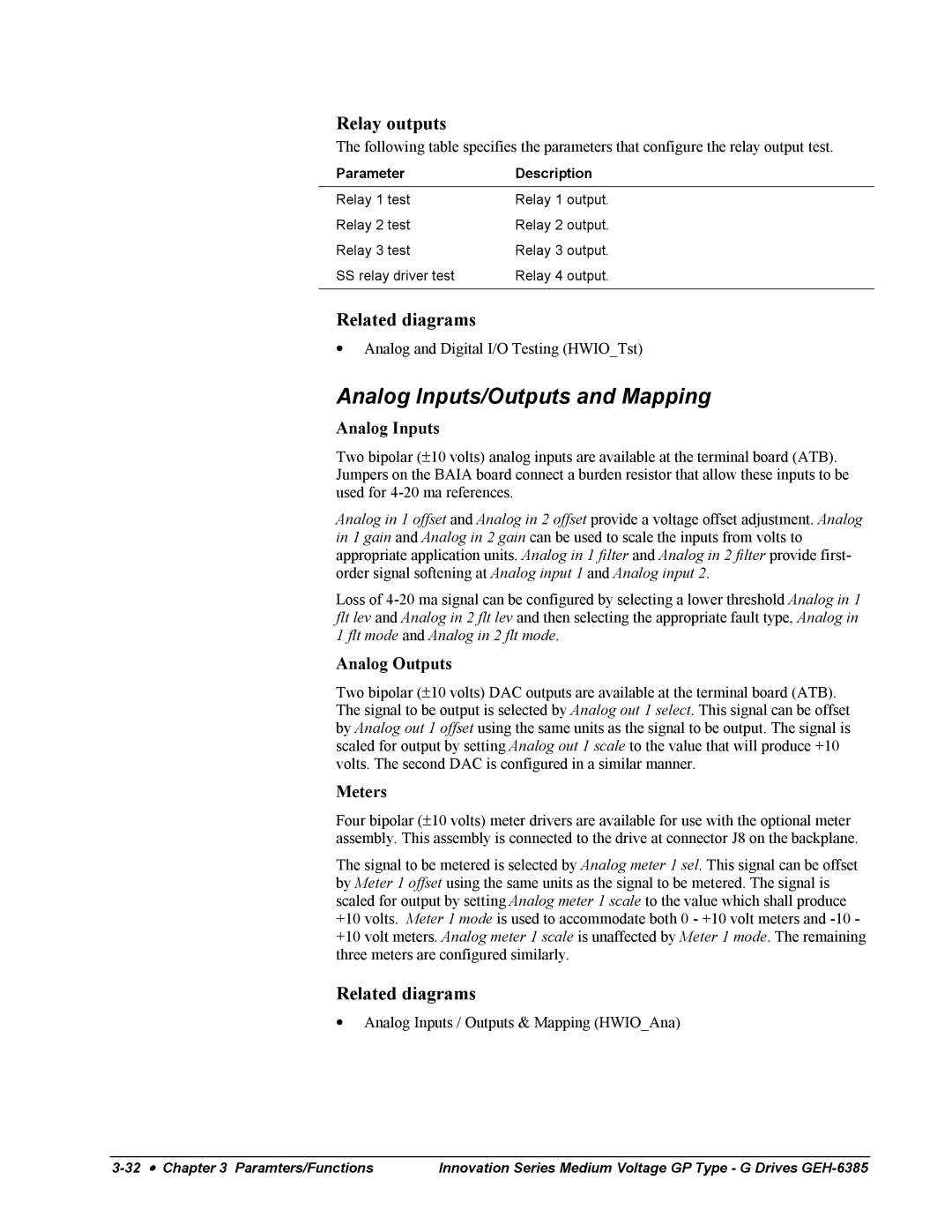

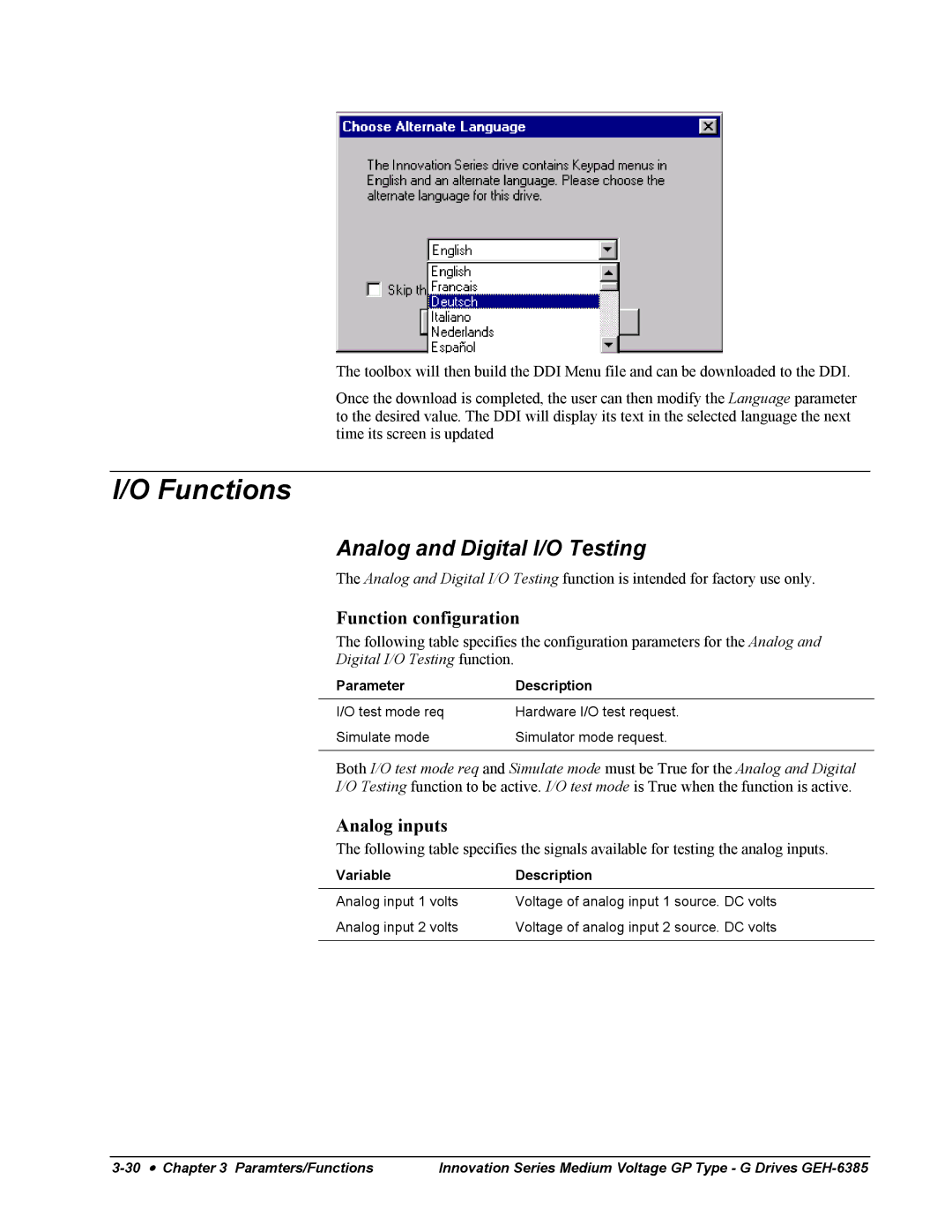

3-28 • Chapter 3 Paramters/Functions Innovation Series Medium Voltage GP Type - G Drives GEH-6385
