Keypad Contrast Adjustment

Normally the LCD contrast of the Drive Diagnostic Interface (DDI) should be adjusted at the DDI or keypad. The user can modify the Keypad contrast adj parameter under the General Setup -> Keypad -> Keypad Functions menu.

A special keypad key sequence is also available to make this adjustment and is especially useful when the contrast is too light or too dark to navigate the menus. The sequence is to hold down the Menu key and press either the up (darker) or down (lighter) arrow keys until the contrast is acceptable.

If your DDI firmware version is prior to V02.01.03C and the DDI contrast is too light or too dark to navigate through the menus you will need to use Toolbox to find the Keypad contrast adj parameter and make the adjustment.

Function configuration

ParameterDescription

Keypad contrast adj	Adjusts the contrast of the DDI LCD screen. Values are
	from 0 to 63 where 63 is the darkest contrast. Setting
	Keypad contrast adj to 0 will cause the DDI to adjust the
	contrast to a middle value.
	Note Once Keypad contrast adj has been modified in
	the toolbox and then saved in the drive, a hard reset
	must be performed for the user to see their modification
	to the contrast reflected in the DDI.

Keypad Meter Configuration

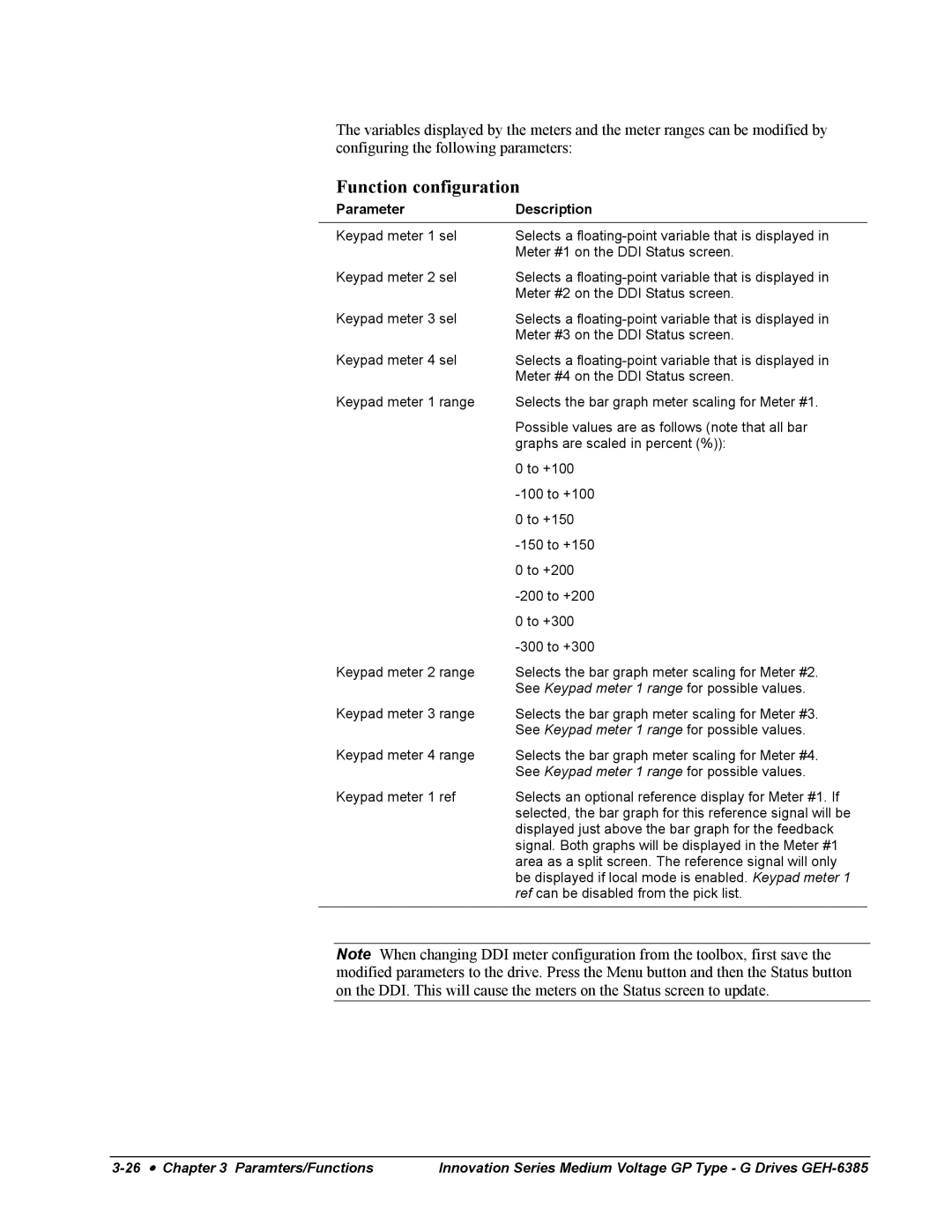

The DDI Status screen has four animated meters and associated text that display drive performance information.

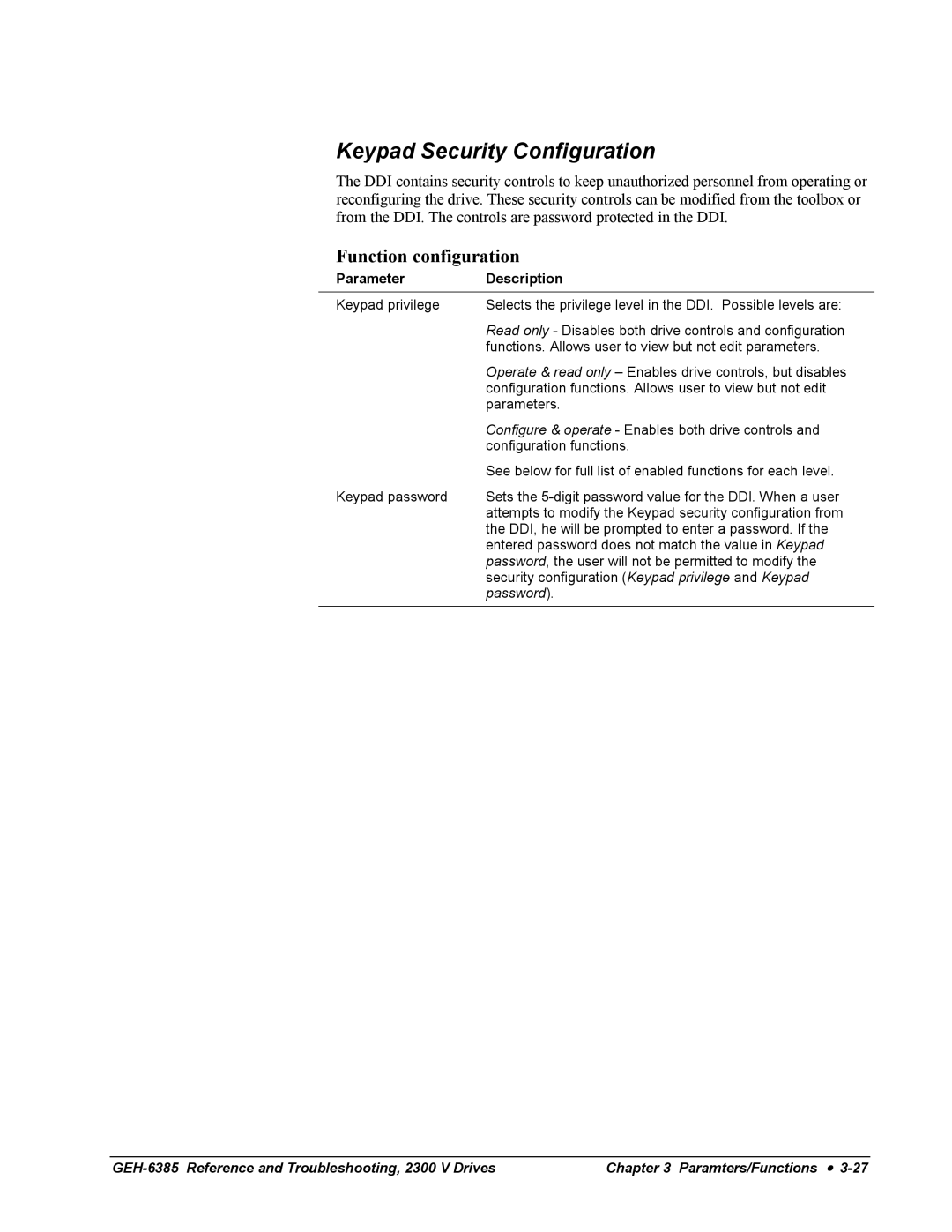

GEH-6385 Reference and Troubleshooting, 2300 V Drives Chapter 3 Paramters/Functions • 3-25
