Clear buffer

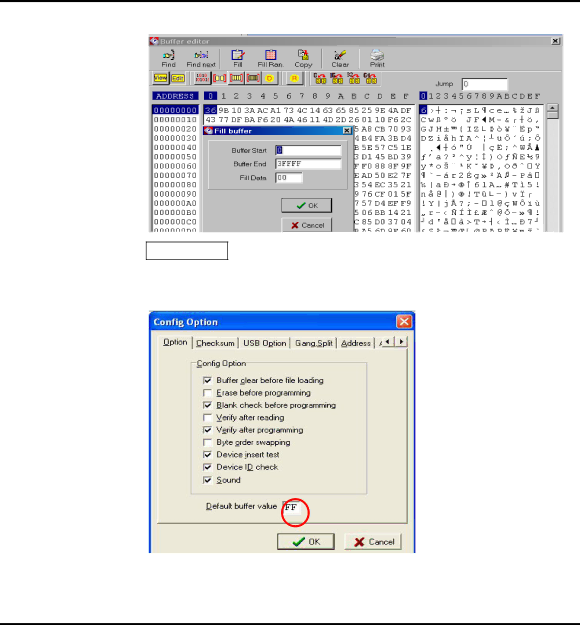

Fill entire buffer with the same data in “default buffer value” which can be any data. In most, it is “FF” but it can be “00” for Motorola S-record type.

52

Image 52

IBM MaxLoader manual Clear buffer
