Emerson U/300/S/12P Connecting Signal Cables, Port side cabinet Cable No. main cabinet, W45, W58

Page 35

Chapter 3 Electrical Installation

25

Main cabinet

A

Side cabinet

W6( red)

W5( green)

W4( yellow )

Nut M10

Spring w asher 10

Plain w asher 10

Plain w asher 10

A amplified view		Bolt M10 *35

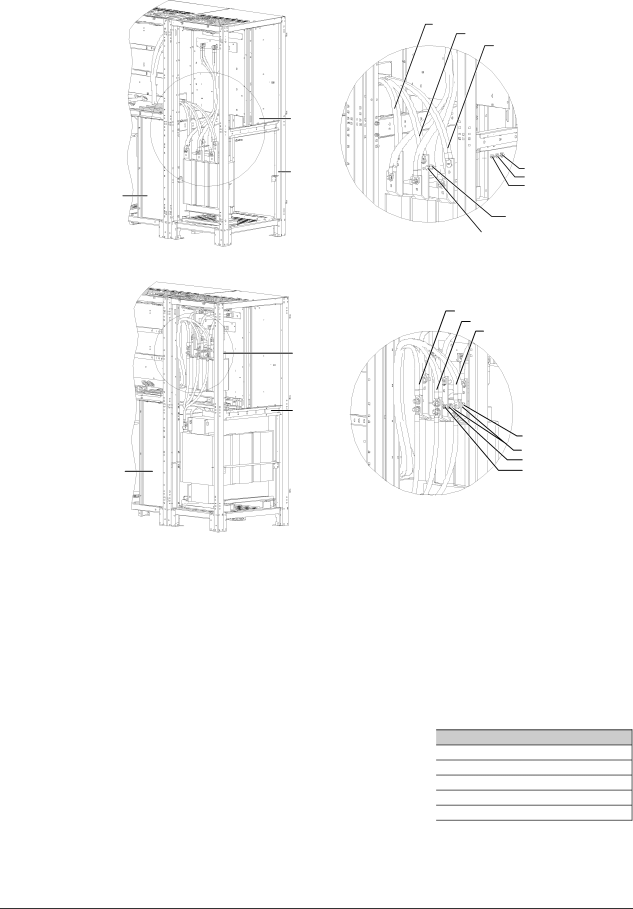

Figure 3-10 Power cable connection between main cabinet and side cabinet of 400kVA UPS (6-pulse rectifier)

Main cabinet

A

Side cabinet

W4( yellow )

W5( green)

W6( red)

Bolt M10 *35

Plain w asher 10

Spring w asher 10

Nut M10

A amplified view

Figure 3-11 Power cable connection between main cabinet and side cabinet of 400kVA UPS (12-pulse rectifier)

3.4.2 Connecting Signal Cables

You need not connect signal cables between the main cabinet and side cabinet of the 300kVA UPS (12-pulse rectifier).

When you connect signal cables between the main cabinet and side cabinet of the 400kVA UPS, you should connect the signal cables from the main cabinet to the corresponding ports on the ULW366SA8 board of the side cabinet. The connection relationship is shown in Table 3-9, you just need to connect the J2, J4, J6, J7 and J10 ports. The positions of the ports on the ULW366SA8 board are shown in Figure 3-12.

Table 3-9 Signal cable connection between main cabinet and side cabinet of 400kVA UPS

Port (side cabinet)	Cable No. (main cabinet)
J2	W98-12
J4	W98-13
J6	W45
J7	W41-5
J10	W58

Meaning

Fan power Fan power

Rectifier current detection

Fuse fault detection

Rectifier drive
