CAUTION: Equipment damage hazard

Only manually set and operate these solenoid valves when the mold is fully open. This sole- noid valves will operate and the pneumatic cir- cuit changes irrespective of the conditions of the other solenoid valves and the mold machine. Manually operation the solenoid valves make the safety interlock if effective. Damabe to the robot and mold can occur and injury to the oper- ator can occur if the mold is not fully open when setting and operating the solenoid valves.

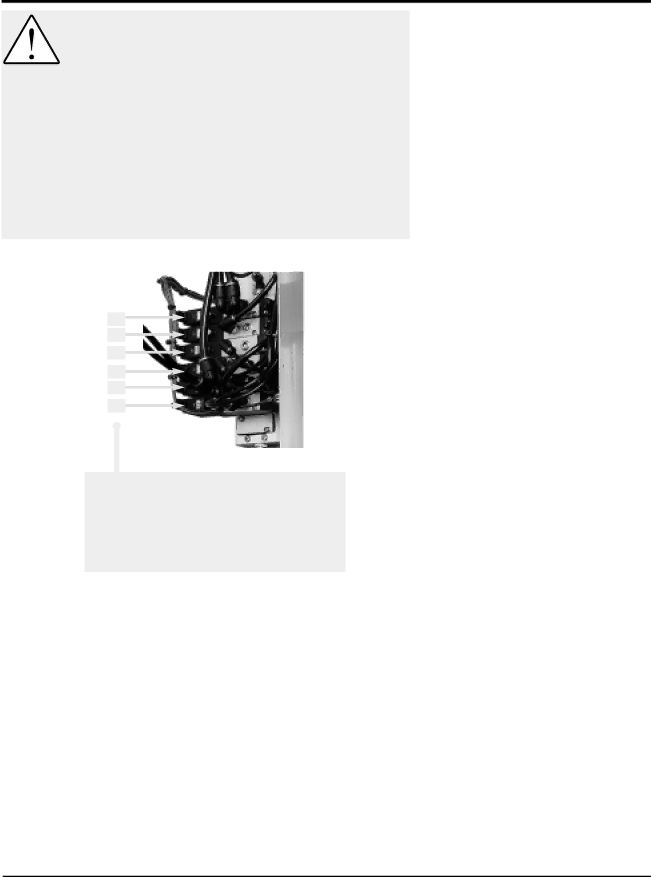

SOLENOID VALVES

A

B

C

D

E

F

ASlide cylinder, up/down

BVacuum (optional)

CMain arm grip

DStrip Cylinder (forward/backward)

EMain arm cylinder (ascend/descend)

FTraverse cylinder (outward/inward)

UGR003/0900

Solenoid Vavles

APPENDIX C-1
