GE Monogram ZIS42N, ZISB42D, ZISW42D installation instructions ZKHTSS1

Page 45

Step 5

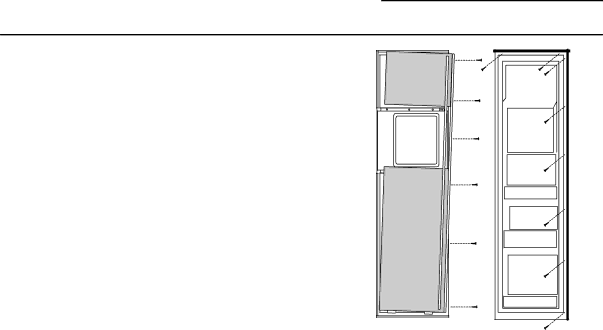

Install Assembled Panels (continued)

ZKHTSS1 for 3/4" Panels

Tubular Stainless Steel Handles

For models with full width dispenser trim and 2 piece freezer panels:

It is best that 2 people perform this step.

• Carefully, lift the assembled panel to the case trim. Hold both panels so they do not twist the extrustion.

Insert the support bracket tabs into the bottom trim.

Push and hold the panel back against the steel door.

• Reinstall original screws into the door extrustion.

• Open the door fully to stop.

• Install screws at the top, and hinge side.

INSTALLATION

ZKHTSS1





45
