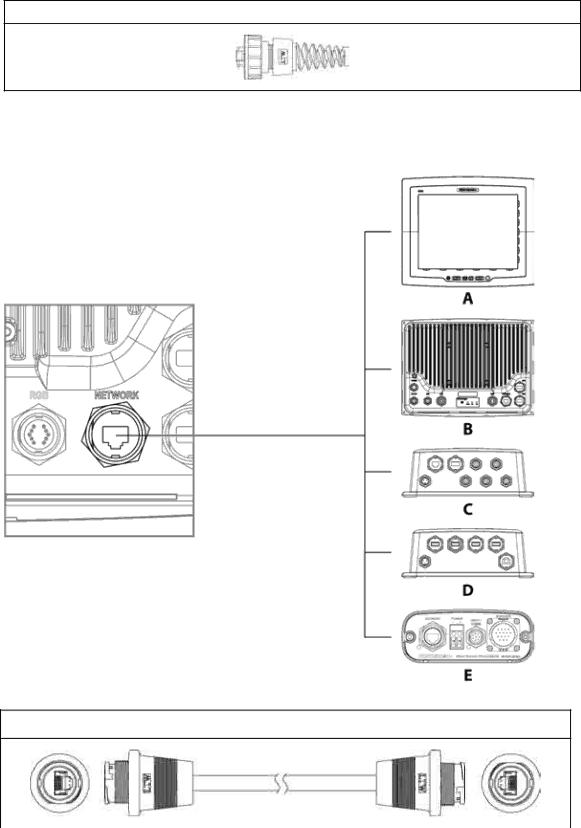

Insert loop back in to network socket if unit is operating as a standalone system

Use a Northstar 8000i Network Cable to connect to other 8000i network devices. If connecting to only one other network device, use optional cable NS004815 Crossover cable joiner in between two (2) conventional network cables

NS004815 Crossover Cable













Use any of the following from 8000i

Use any of the following to network device





Processor





















NS004810 Network Cable 1.6 ft (0.5 m)

NS004810 Network Cable 1.6 ft (0.5 m)

















NS004811 Network Cable 6.5 ft (2 m)

NS004811 Network Cable 6.5 ft (2 m)



















Northstar 8000i System - 12" Display Processor Installation Manual

51

Page 51
