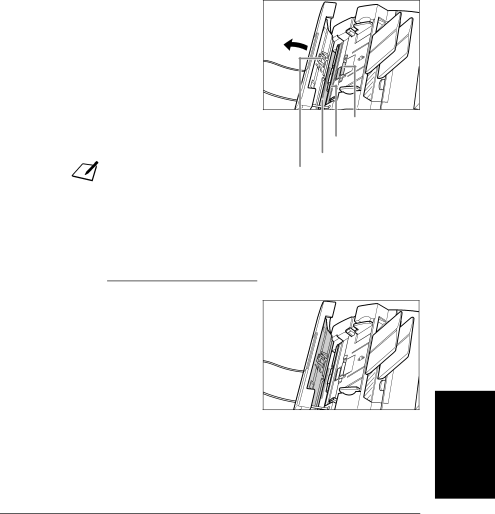

Cleaning the Scanner Components

Cleaning the Scanner Components

Follow this procedure to periodically check and clean the scanner components:

1 Disconnect the power cord from the
FAX.
2 Use both hands to gently open the
operation panel.
•	It only opens partially.
3 While holding the operation panel
open, clean these components:
❏	Separation guide and separation
	roller:
	Wipe with a clean, soft, dry, lint-
	free cloth.
❏	White sheet and scanning glass:
	Wipe with a clean, soft, lint-free
	cloth moistened with water, then
	wipe with a clean, soft, dry, lint-	SEPARATION
	free cloth.	SEPARATION
	free cloth.	ROLLER
		SCANNING GLASS

	•	If the scanner components are	WHITE SHEET
			SEPARATION GUIDE
		dirty, the documents you send or
Note
		copy will also be dirty.

•Be sure to use a soft cloth to avoid scratching the components.

•Do not use tissue paper, paper towels, or similar materials for cleaning; they can stick to the components or generate static charges.

4Clean the underside of the operation

panel (shaded area in the illustration).

• Dirt and dust particles that collect on the underside of the operation panel affect the quality of the documents you copy or send.

Maintenance

Chapter 12

Maintenance

12-5
