RELE' DI PROTEZIONE MINIMA CORRENTE - RC460

MASSIMA CORRENTE 1,5 A

Il dispositivo è posizionato all'interno del quadro elettrico e trova la sua principale applicazione per rilevare l'assenza di corrente di un carico e segnalarlo tramite il relativo contatto del relè libero da tensione.



3

4

5

80

PROTECTION RC460







CURRENT



=













~



MIN.



2





1









6

7

8

17











25



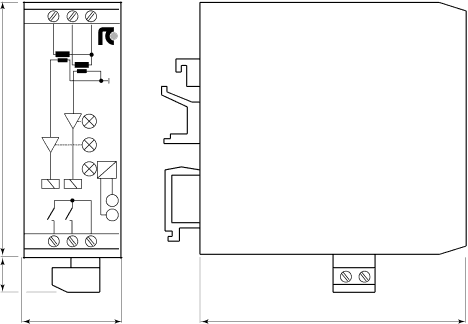

Fig. 90

FUNZIONI

Il dispositivo è dotato di LED verde per segnalazione presenza tensione e può controllare 2 carichi elettrici contemporaneamente (max 1,5A).

Con la misura di corrente maggiore della soglia minima di intervento, quindi in condizione di normale funzionamento, il relè è eccitato con il contatto di allarme chiuso. In caso di intervento si accende il LED rosso ed il relè si diseccita aprendo il contatto.

Questa condizione consente l'intervento dell'allarme an- che in caso di mancanza di alimentazione o per guasto del dispositivo.

I morsetti di alimentazione del dispositivo (1 - 2) si trovano sotto la scatola di contenimento.

DATI TECNICI

24Vac ± 15% - 50/60Hz - 1VA

Alimentazione

Potenza commutabile

5A - 250Vac - 1000VA - AC1

Max corrente

1,5 A

Soglia minima corrente

50 mA

Isolamento

2kV (RMS)

MINIMUM CURRENT PROTECTION RELAY - RC460

MAXIMUM CURRENT 1,5 A

The device is placed in the electric box and it has been designed to sense the absence of current from a load and indicate this status through the voltage free contact.

12

75

FUNCTION

The device is equipped with a green LED to indicate voltage presence and can control two electric loads simultaneously (max 1,5A).

With measured current close to the minimum intervention threshold (normal working conditions) the relay is ener- gized and the relative contact is closed.

In case of intervention the red LED is on and the relay is deenergized with consequent opening of the contact. This working mode allows to have an alarm indication also in case of not energized or faulty device.

Feeding voltage terminals (1-2) are located under contain- ing box.

TECHNICAL DATA

24Vac ± 15% - 50/60Hz - 1VA

Feeding

Switching power

5A - 250Vac - 1000VA - AC1

Max current

1,5 A

Min current threshold

50 mA

Insulation

2kV (RMS)

156

RC GROUP - 149_ItEn.0102

Page 155 Page 157
Page 156
Image 156
Dell MP2000 manual Rele DI Protezione Minima Corrente RC460, Massima Corrente 1,5 a, Minimum Current Protection Relay RC460
