MP2000 AIR CONDITIONERS

Sistema di controllo a microprocessore per condizionatori d'aria • Air conditioners microprocessor control system

SERVOMOTORE PROPORZIONALE PER SERRANDE NM24-SR

Questo servomotore ad azione proporzionale trova la sua principale applicazione per il controllo del cilindro rotante di mandata aria nelle unità terminali Flexibox.

Il servomotore è privo di contatti di fine corsa e si ferma automaticamente quando arriva a toccare i suoi arresti interni o quando la serranda arriva in fine corsa tramite la frizione elettromagnetica interna.

La limitazione dell'angolo di rotazione (inferiore a 90°) si ottiene posizionando la vite 4.

Il comando manuale può essere ottenuto premendo il pulsante di sgancio del riduttore.

Dopo aver dato tensione il servomotore effettua automati- camente un test di funzionamento adattandosi all'angolo di rotazione della serranda

PROPORTIONAL ACTUATOR FOR DAMPER NM24-SR

The device has been designed to drive the cylindric air distributor of the Flexibox terminal unit.

The actuator is not equipped of end-positioning auxiliary switches and the motor stops running when the damper end stop or actuator end stop is reached (by built-in electromagnetic clutch).

The angle-of-rotation limit (less than 90°) is achieved through screw 4 positioning.

For manual operation of the actuator push the self-resetting button.

When the power supply is first switched, the actuator performs an automatic function test in order to adapt its working range according to the damper rotation angle.

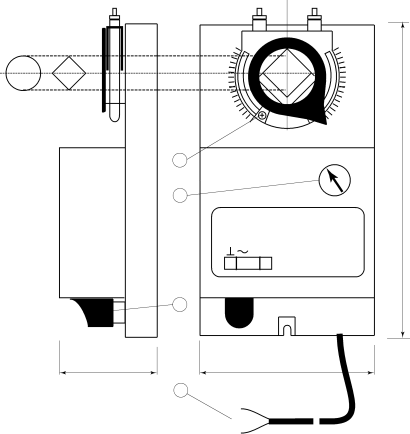

8⎟20 8⎟20

4

2

3

58

1

Fig. 100

1Cavo di collegamento 1 = Nero = 0V

2 = Rosso = 24V

3 = Bianco = 0⎟10V

4 = Bianco = Non utilizzato

2Selettore senso rotazione motore

3 Pulsante per comando manuale

4 Limitatore angolo rotazione

DATI TECNICI

24Vac ±20% - 50/60Hz

Alimentazione

Segnale di riferimento

0 ⎟ 10 V

Potenza assorbita

3VA

Coppia

8Nm

Angolo di rotazione

90°

Tempo di corsa

150sec.

166



L.....R

140

YU 1 2 3 4

80

1

2

3

4

1Connection cable 1 = Black = 0V

2 = Red = 24V

3 = White = 0⎟10V

4 = White = not used

2Rotation sense selector

3 Self-resetting push-button

4 Limits for angular rotation

TECHNICAL DATA

24Vac ±20% - 50/60Hz

Feeding

Control signal

0 ⎟ 10 V

Power

3VA

Torque

8Nm

Rotation angle

90°

Running time

150sec.



RC GROUP - 149_ItEn.0102
