Novell NetWare | Oki 7300e specification

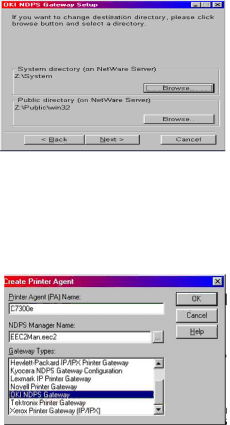

The OKI NDPS Gateway can be installed from the OkiLAN 7300e CD under Software Utilities. Please follow on-screen instructions. You will require a drive mapping to the NetWare server that you are installing to.

>During installation, all files are copied to the SYS:/SYSTEM and SYS:/PUBLIC/WIN32 directories on the NetWare server

1.To setup the OkiLAN 7300e to work with the OKI NDPS Gateway, you should create a NDPS printer object as normal with the nwadmin32 utility. When you get to the [Create Printer Agent] screen, under [Gateway Types] there should now be an option for OKI NDPS Gateway.

Novell NetWare 106
