R e p l a c i n g t h e F u s e r C a r t r i d g e / B T R

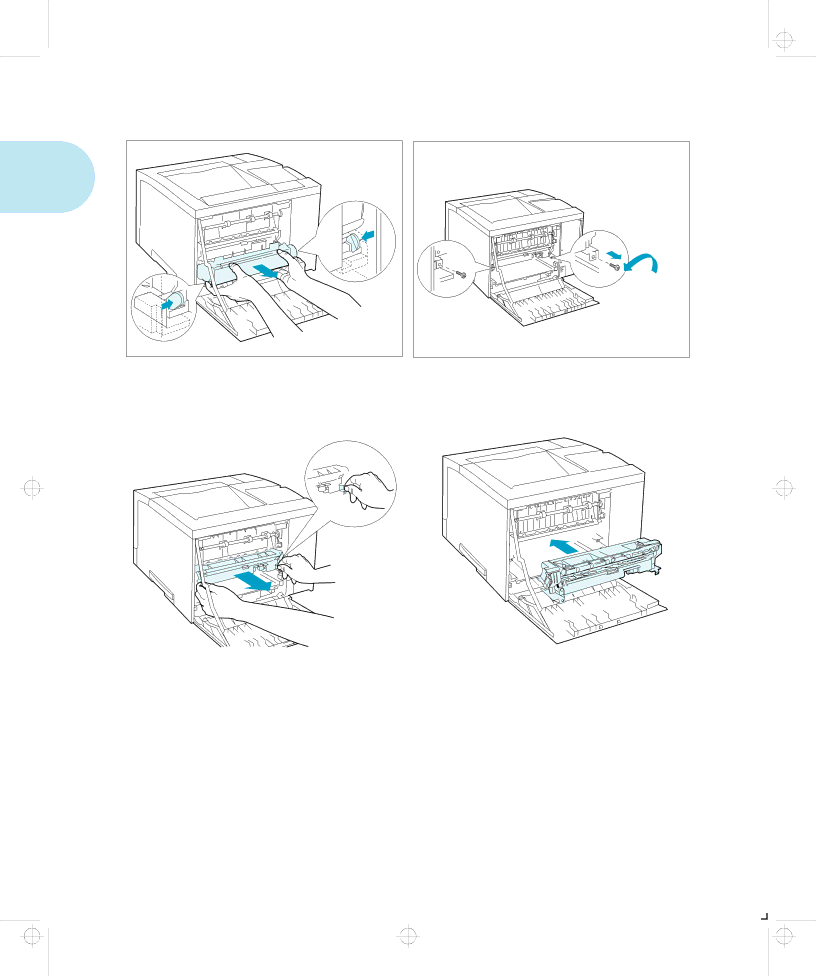

4 Remove the Duplex Module by pushing	5 Remove the mounting screws from the
the green lock buttons on either side of it.	printer as shown above, and set them
	aside.

6 Pull out the old fuser cartridge by the tabs	7 Slide the new fuser cartridge into the
on either side of the cartridge.	printer.

B-6❖ L N 1 7 a n d L N 1 7 p s P r i n t e r s U s e r G u i d e
