Removal and Replacement Procedures

4.Loosen the 8 PM2.5×5.0 screws 1 that secure the fan cover to the notebook.

5.Remove the fan cover 2.

✎The fan cover is included in the Miscellaneous Plastics Kit, spare part number 344852-001 or 370805-001.

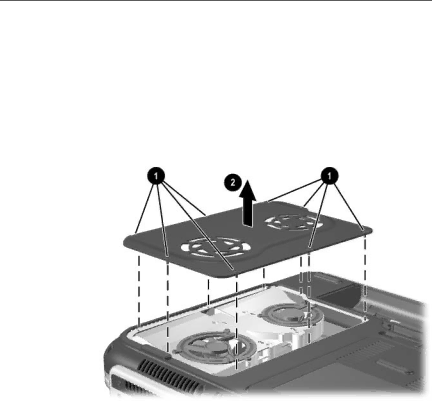

Removing the Fan Cover

5–18

Maintenance and Service Guide
