Removal and Replacement Procedures

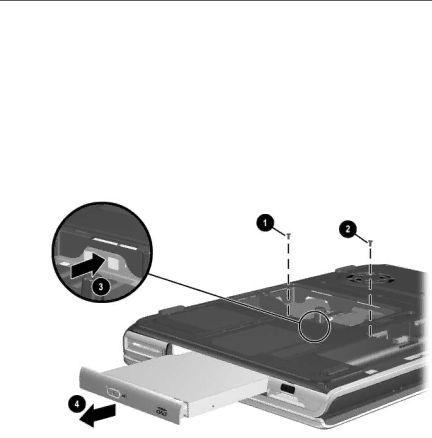

4.Remove the PM2.5×5.0 screw 1 that secures the optical drive in the memory module/Mini PCI compartment.

5.Remove the PM2.5×8.0 screw 2 that secures the optical drive in the battery bay.

6.Push on the back of the optical drive 3 through the opening on the left side of the memory expansion/Mini PCI compartment.

7.Remove the optical drive 4.

Removing the Optical Drive

Reverse the above procedure to install an optical drive.

5–16

Maintenance and Service Guide
