Removal and Replacement Procedures

2.Disconnect the SD Card slot/infrared module cable 1 from the LIF connector on the module.

✎The SD Card slot/infrared module cable is included with the SD Card slot/infrared module. It is also included in the Miscellaneous Cable Kit, spare part number 344851-001.

3.Remove the 3 PM2.5×8.0 screws 2 that secure the module to the notebook.

4.Remove the module bezel 3.

✎The SD Card slot/infrared module bezel is included in the Miscellaneous Plastics Kit, spare part number 344852-001 or 370805-001.

5.Remove the module 4.

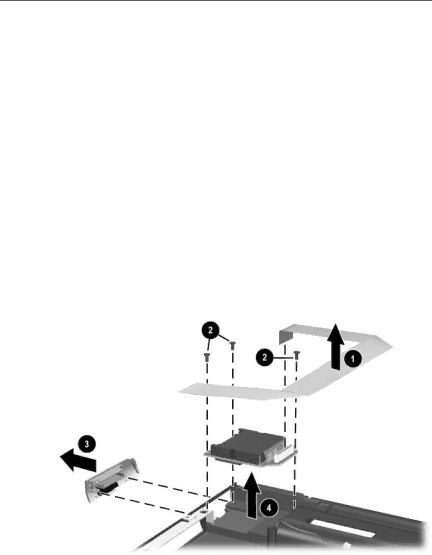

Removing the SD Card Slot/Infrared Module

Reverse the above procedure to install the SD Card slot/infrared module.
