Removal and Replacement Procedures

If it is necessary to remove one or both of the fans from the heat sink, follow these steps:

1.Remove the 6 PM1.5×4.0 screws 1 that secure the fans to the heat sink.

2.Remove the fans 2.

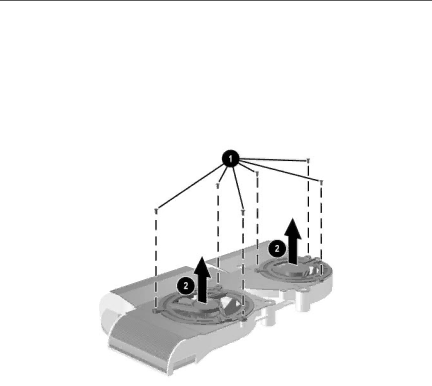

Removing the Fans

Reverse the above procedure to install the fans.
