Removal and Replacement Procedures

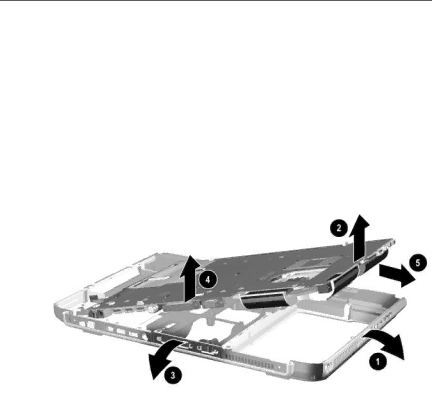

7.Flex the right side of the base enclosure 1 to the right.

8.Lift the right side of the system board 2 until the connectors on the right side of the board clear the base enclosure.

9.Flex the rear edge of the system board 3 toward you.

10.Lift the rear edge of the system board 4 until the connectors on the rear panel of the board clear the base enclosure.

11.Slide the system board to the right at an angle 5 and remove it.

Removing the System Board

Reverse the above procedure to install the system board.

Maintenance and Service Guide

5–33
