Page 39

Chapter 3: Configuration

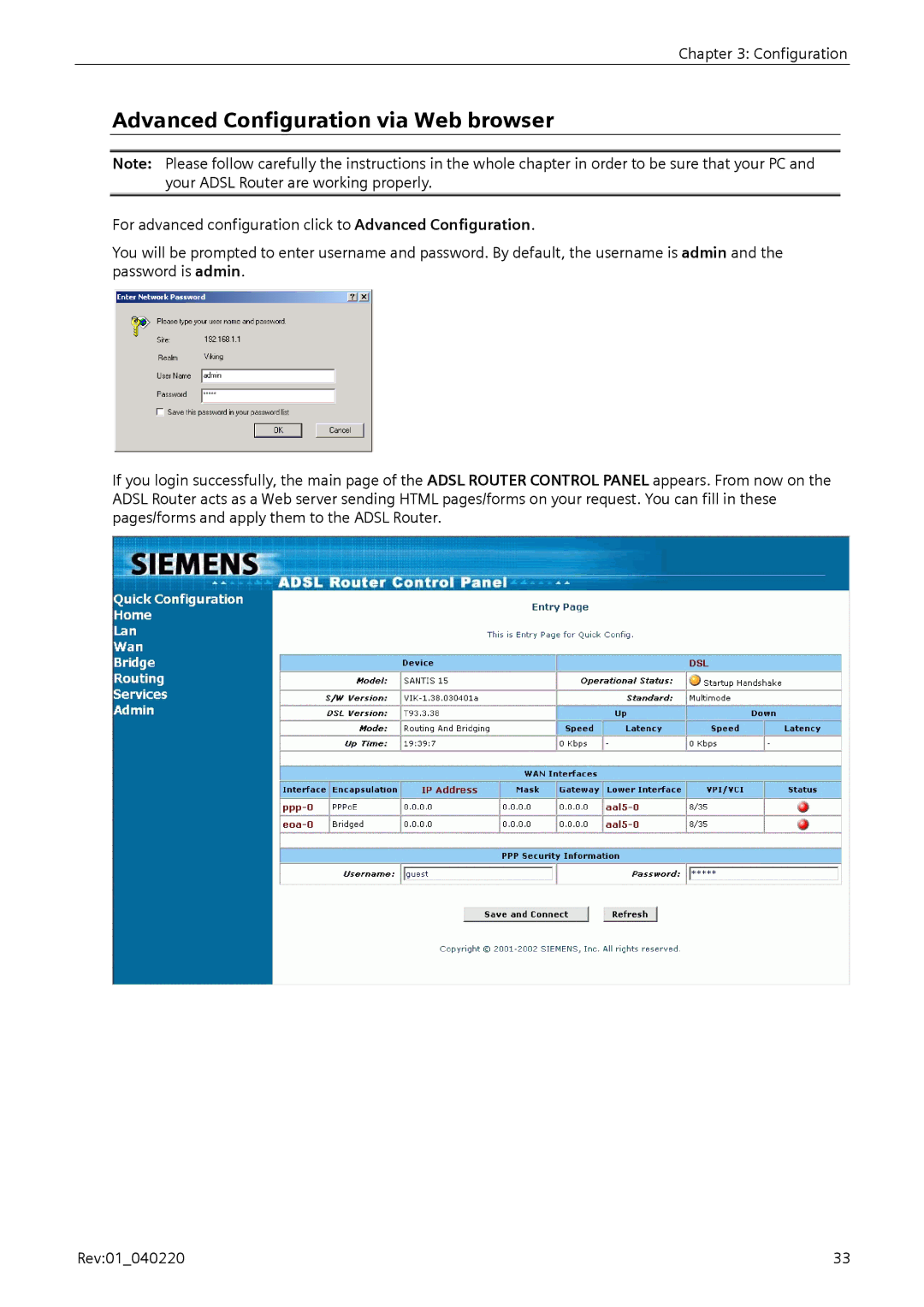

Advanced Configuration via Web browser

Note: Please follow carefully the instructions in the whole chapter in order to be sure that your PC and your ADSL Router are working properly.

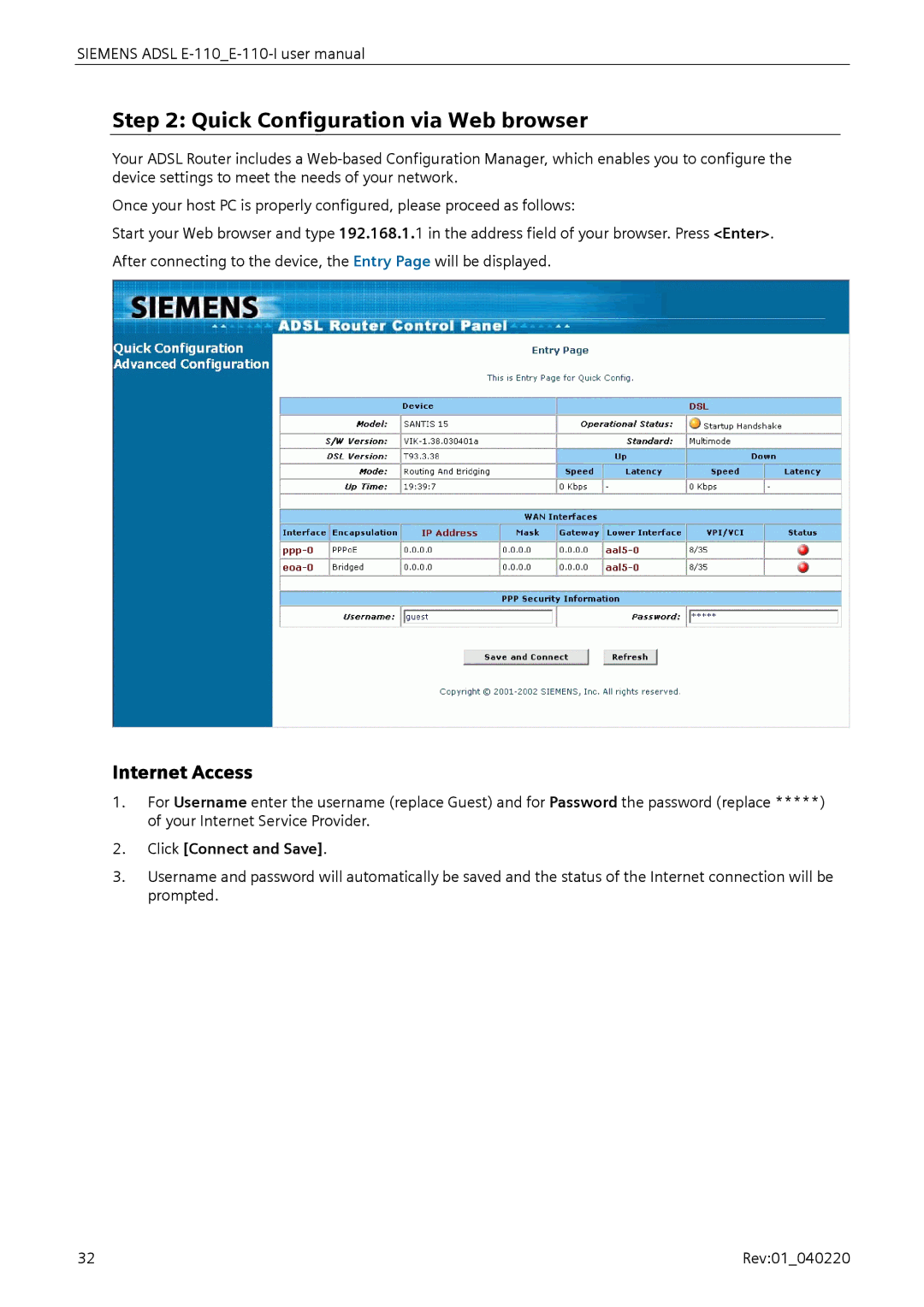

For advanced configuration click to Advanced Configuration.

You will be prompted to enter username and password. By default, the username is admin and the password is admin.

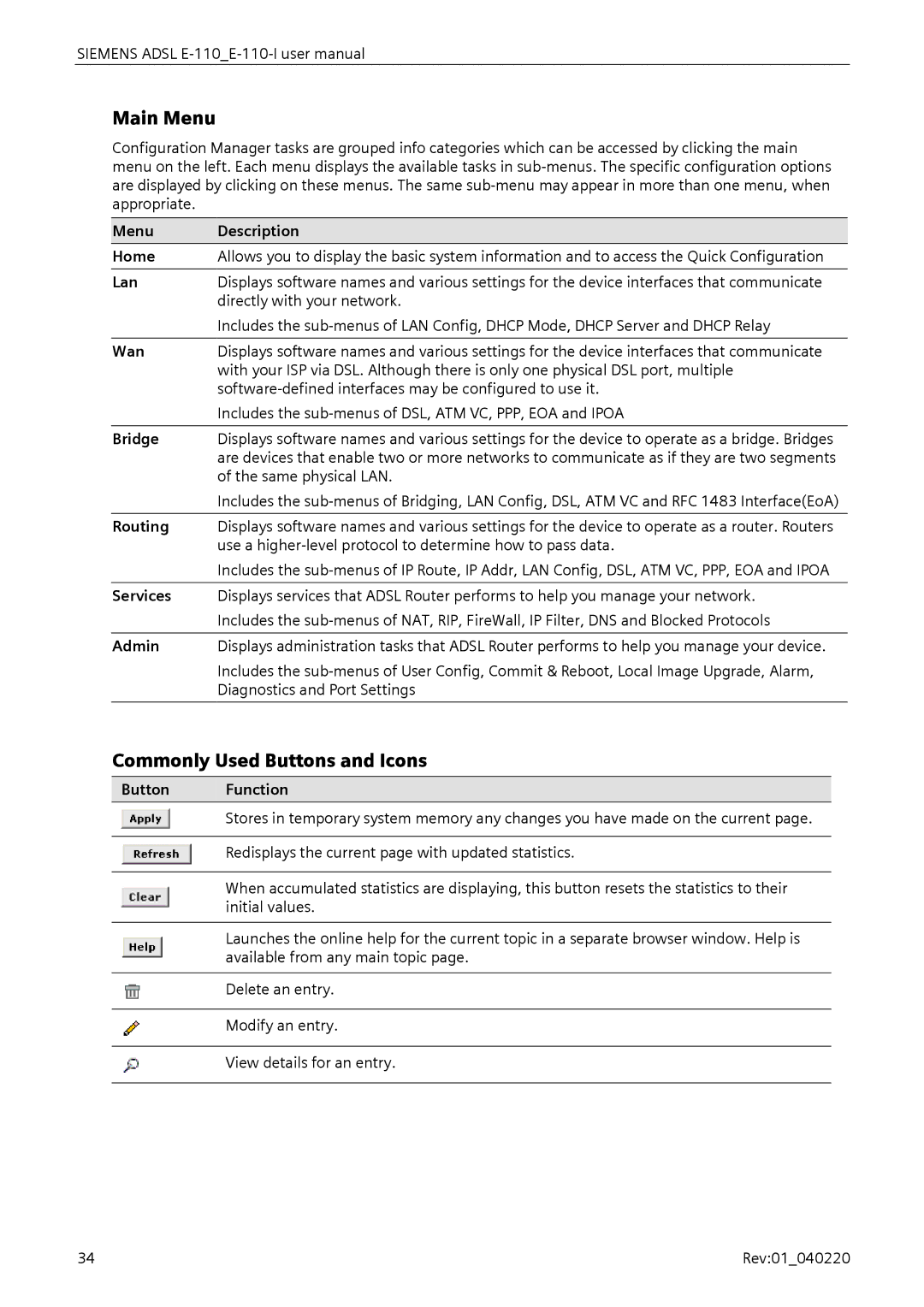

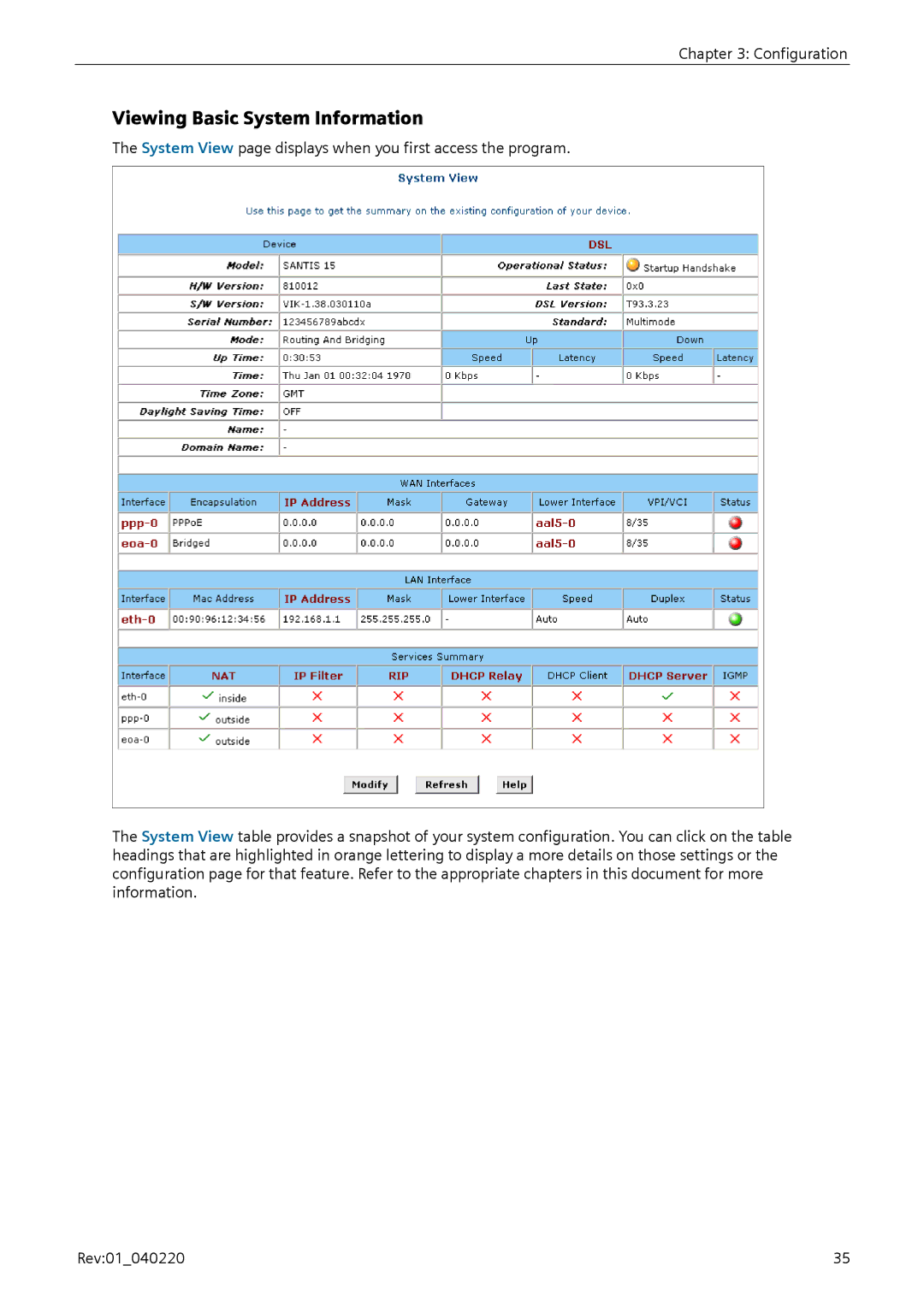

If you login successfully, the main page of the ADSL ROUTER CONTROL PANEL appears. From now on the ADSL Router acts as a Web server sending HTML pages/forms on your request. You can fill in these pages/forms and apply them to the ADSL Router.

Rev:01_040220

33
