Cisco Systems CF2001P user manual Checking the Hole-Punching Positions for FN-107

Page 36

CF2001P

NEXT

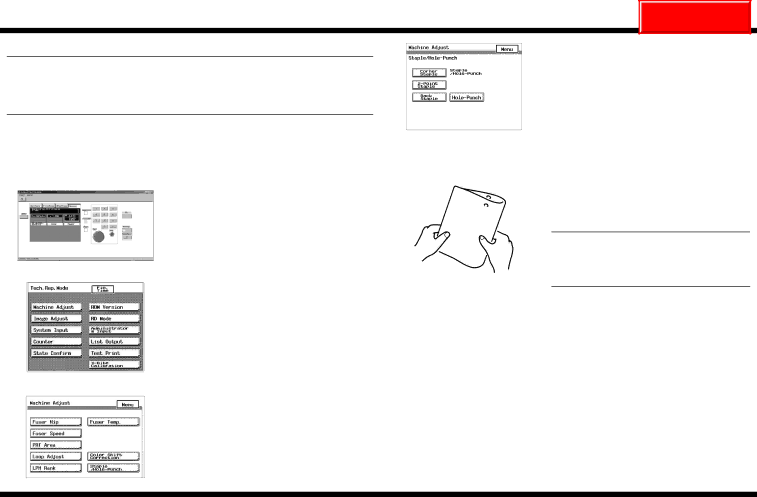

■Checking the Hole-Punching Positions for FN-107

NOTE

•For details on the installing FN-107, refer to its Setup Instructions.

•To adjust FN-107, follow the instructions below.

•To exit the External Panel Controller, refer to step 14 on page 24.

1.Unplug the power cord, and then turn off the printer.

2.Load A4-size (or Letter-size) paper (in land- scape orientation) into Tray 1.

6. Click [Hole-Punch].

C4683P005CA

7.Click the Start key in the External Panel Controller.

3.Check that the External Panel Controller appears in the computer screen, and then display the Tech. Rep. Mode screen. (For details about displaying the Tech. Rep. Mode screen, refer to the Service Manual.)

C4004P565CA

4. Click [Machine Adjust].

8.Fold the paper that is fed out in half, and check that the punched holes are aligned.

Standard position: ±2mm

NOTE

If the punched holes are not at their stan- dard positions, adjust the hole-punching

4643U031AA position.

C4004P597CA

5. Click [Staple/Hole-Punch].

C4004P588CA

4004-7715-01	– 35 –
