Teledyne 10 manual Foxy 200 tubing connections

Page 31

BioOptix™ 10 Section 2 Installation

Blue

1

Yellow

2

Orange

3

Green

4

Clear

5

Blue

6

	Yellow			Orange				Green				Clear


	7		8					9		10

10

1

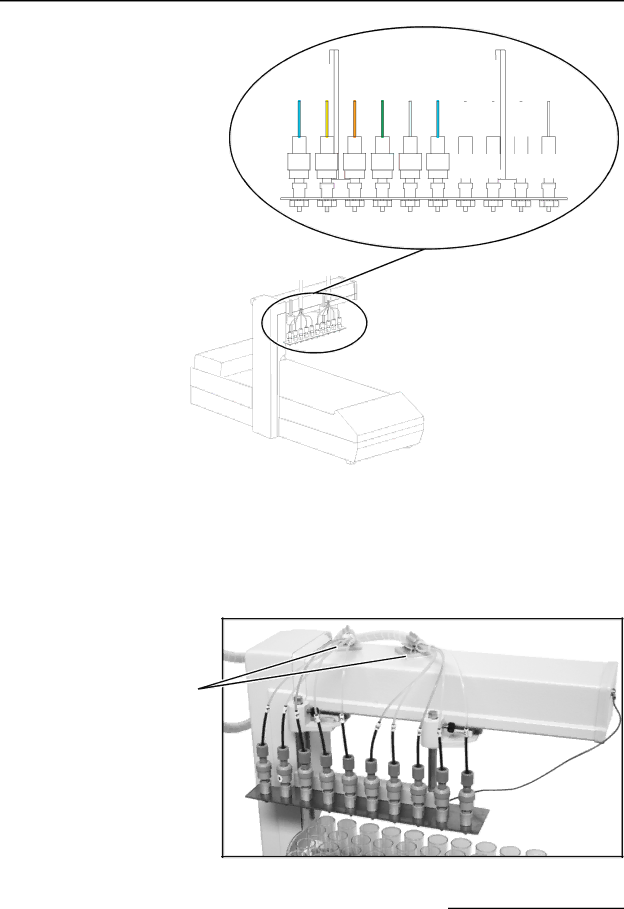

Figure 2-16 Foxy 200 tubing connections

Refer to Figure 2-16 and complete the tubing connections between the BioOptix 10 and the Foxy 200. Thread and finger-tighten the fittings into the ten-channel drop former assembly. After connecting the tubing, peel the adhesive backing from each retainer. Then, attach each retainer to the top of the Foxy 200 arm (Figure 2-17).

Retainers with adhesive backing

Figure 2-17 Adhesive retainers attached

2-13
