Page 45

BioOptix™ 10

Section 3 Operation

3.6.3Saving the Experiment Save the experiment by selecting the File>Save menu command.

File

Use a descriptive file name so that it can be located for later use.

3.7 Running the

With the experiment file open, some BioOptix 10 operation

Experiment

buttons along the bottom of the window are active (Figure 3-8).



Buttons will be active or inactive according to the current state of



the system.











Fast

Next





Play

Stop Forward

Tube

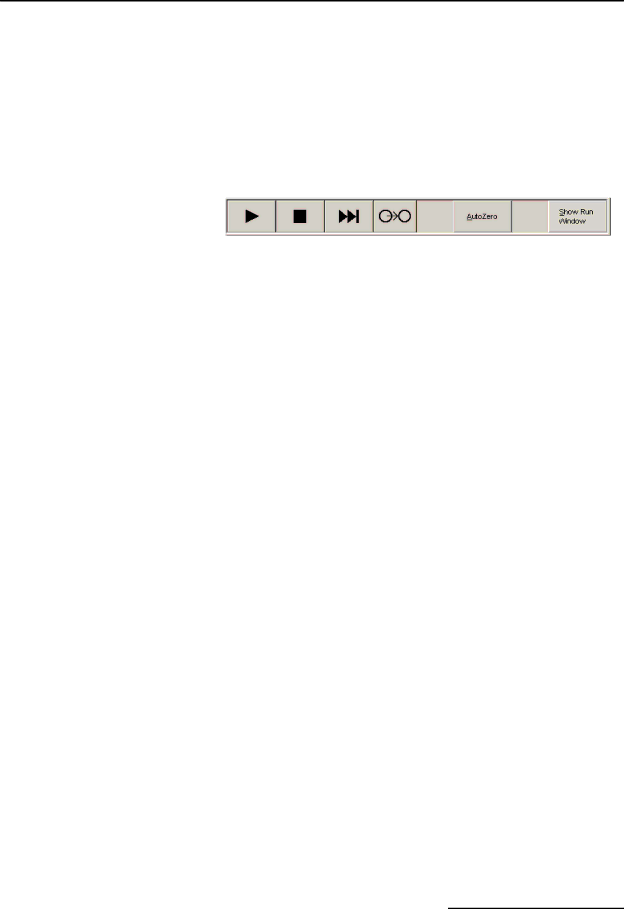

Figure 3-8 BioOptix 10 Operation Buttons



Table 3-1 Operation Buttons









Button

Description



Play

Click to begin the experiment run. If the Stop





button was clicked during the run, clicking the





Play button will resume the run.









Stop

Click to suspend the run activity. From this state





you click Play to resume the run, or click Fast





Forward to skip to the next block or abort the





run.









Fast Forward

Click the Fast Forward to skip to the next block





or abort the run.









Next Tube

Click this button to advance the fraction collector





to the next row. This is useful when there is a





need to isolate effluent.









AutoZero

The baseline absorbance trace may shift if





buffer solutions are changed mid-run. Click this





button to re-zero the absorbance trace.









Show Run Window

Click this button to bring the experiment window





for the run in progress to the foreground. If you





have several other files (e.g. previous experi-





ments or new methods) open in the BioOptix 10





window this button lets you quickly return to the





running experiment.







3.7.1 System Operation

To start the experiment, click the Play button. The system begins



operation with the first block and proceeds according to the



experiment and method files.

Referring to Figure 3-7, this first block would be “Equilibrate” and use the operating parameters specified by the method file (Figure 3-2). The system would pump 0 %B (100% of buffer A) at

5.0mL/min. The system would pump 50 mL and then pause (Figure 3-9). Similarly, the BioOptix 10 would proceed through the Sample Load, Wash, Elute, and Flush blocks.

3-9
