Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide
OL-11497-03
Chapter 5 Field Diagnostics for the Cisco 12000 Series Router

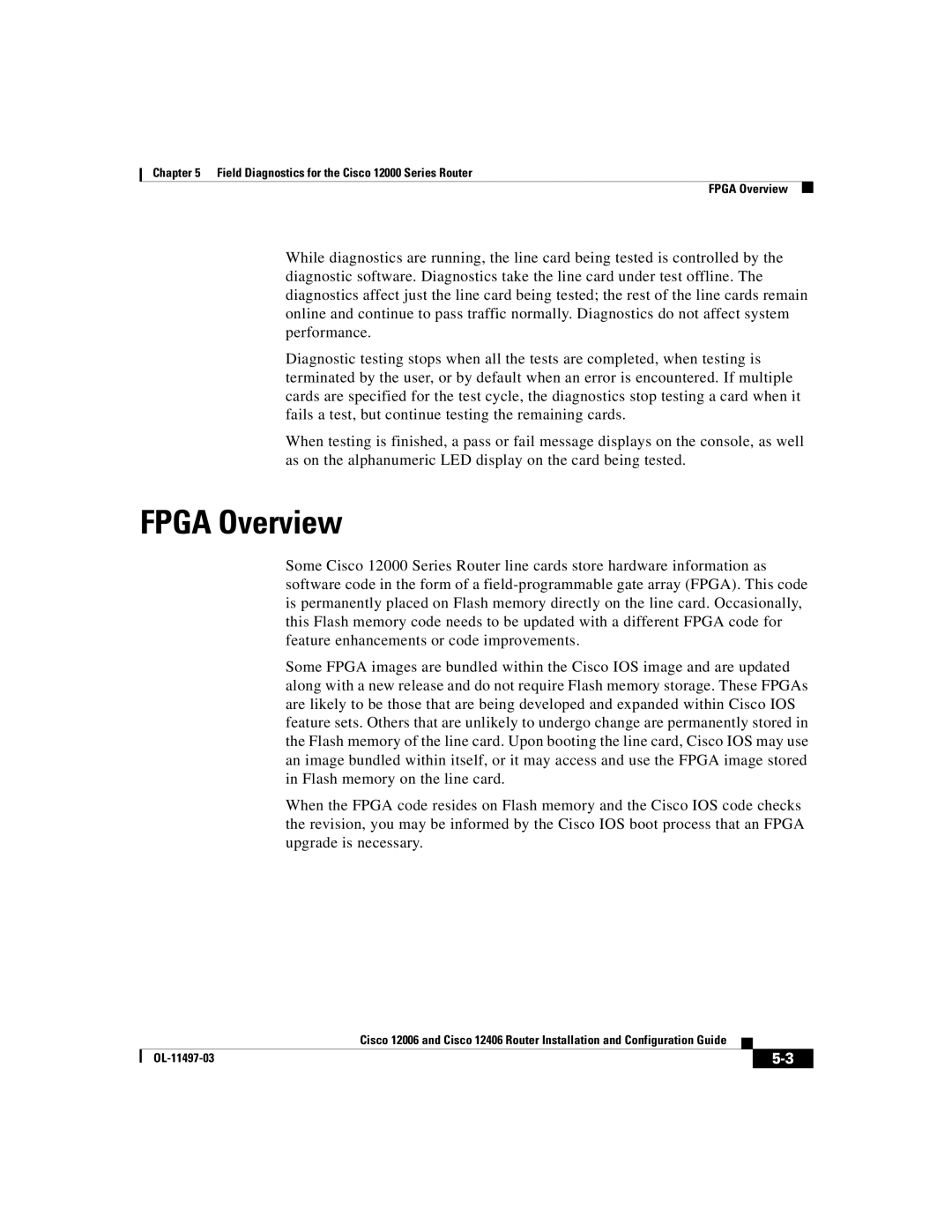

FPGA Overview
Loading muckier/award/c12k-fdiagsbflc-mz.conn_isp from
223.255.254.254 (via Ethernet0): !!!!!( stuff deleted)
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 8452824 bytes]
FD 0> *****************************************************
FD 0> GSR Field Diagnostics V6.14
FD 0> Compiled by award on Mon Sep 22 14:05:20 PDT 2003
FD 0> view: award-conn_isp.Field_Diag_Release
FD 0> *****************************************************
Executing all diagnostic tests in slot 0
(total/indiv. timeout set to 3000/600 sec.)
FD 0> BFR_CARD_TYPE_OC12_4P_ATM_E48 testing...
FD 0> Available test types 2
FD 0> 1
FD 0> 3
FD 0> 11
FD 0> Completed f_diags_board_discovery() (0x2f)
FD 0> Verbosity now (0x00000211) TESTSDISP FATL IDSPRINTF
FD 0> Test list selection received: Test ID 3, Device 0
FD 0> running in slot 0 (1 tests from test list ID 3)
FD 0> Skipping MBUS_FDIAG command from slot 5
FD 0> Just into idle state
FDIAG_STAT_IN_PROGRESS(0): test #1 Pinnacle FPGA Upgrade
FD 0> Same version of IOB FPGA in flash and bundle: rev A0.79
FD 0> IOB FPGA completed
FD 0> MICKEY FPGA completed
FD 0> Same version of MOUSE FPGA in flash and bundle: rev A0.11
FD 0> MOUSE FPGA completed
FD 0> Lower version of SAF FPGA being programmed over flash
bundle: Bundle rev B0.0A flash rev B1.10
FD 0> SAF FPGA completed
FD 0> Magic number indicates first use of this sector in flash for
CPK FPGA
FD 0> WARNING: Not all devices flashed successfully:
fail_flag=0x0010
FD 0> CPK FPGA completed
FD 0> Displaying environmental information
FD 0> 3.3V 5V MBUS 5V Hot Sensor Inlet Sensor
FD 0> (mv) (mv) (mv) (deg C) (deg C)
FD 0> 3288 2568 5048 45.0 34.5
FDIAG_STAT_DONE(0)
FD 0> Changed current_status to FDIAG_STAT_IDLE
Field Diagnostic ****PASSED**** for slot 0
