SECTION 3 " Installation

Vertical and Ceiling Mounts

See Figure 3-6 and the procedure following it.

"NOTE: If mounting the access point on a hollow wall, secure the mounting plate to a 3/4” (thick) plywood base by four 1” X 1/4” nuts, bolts, and washers. Anchor the plywood base to two separate wall studs by four 2” X 1/4” diameter lag screws (two lag screws in each stud).

6.00"

1.00"

2.00"

2.00”

1.00"

1.00"

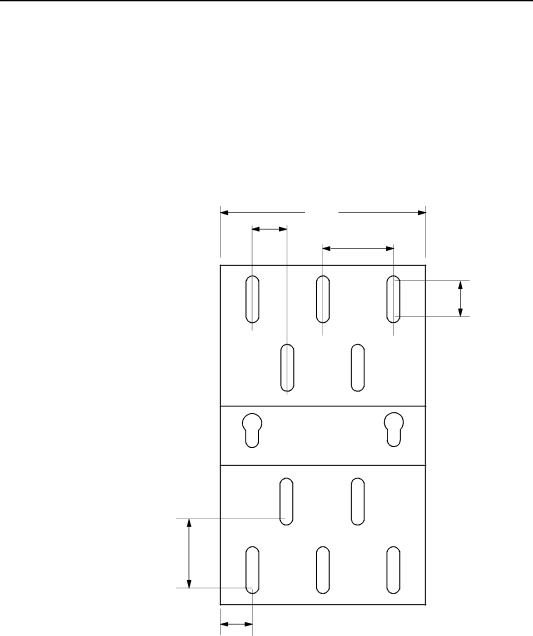

Figure 3-6

Mounting Bracket

6710 Access Point User’s Guide 3-9
