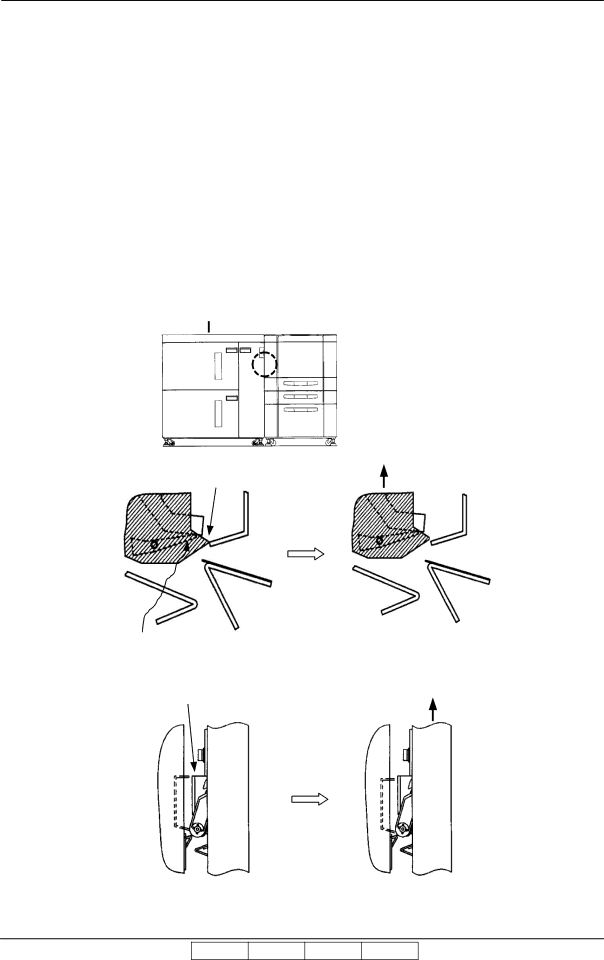

8) If printed-paper have “dog-eared corners”, check the next item. Because paper may touch a tip of entrance paper guide.

(1)Check which of “Disable”, “Enable” and “Auto select” the de-curler function of the container stacker selects in OCP.

(2)Install the container stacker slightly than the printer above.

Check the mark position of front side and the mark frame of rear side, and adjust the leveling bolt.

(3)Check contact condition of the feeding paper and tip of entrance paper guide on container stacker, when the container’s de-curler function selects “Disable”.

(4)Check contact condition of the feeding paper and tip of entrance paper guide on container stacker, when the container’s de-curler function selects “Enable”.

(5)If printed-paper have “dog-eared corners”, readjust the height of the container stacker in a leveling bolt, and repeat work (3), (4).

(6)Return to original de-curler function of container stacker selects in OCP.

Upper

Mark position

Entrance paper guide

Upper

Details of connection part at front

Mark frame

Upper

Details of connection part at rear

II

L00 Installation 5-8
