6)Connect the FNS IF cable (4 pin white connector) coming from the Container Stacker 2 to the 4 pin white connector in the Finisher (Connection 1 on the below figure).

7)Connect the FNS IF cable (20 pin black connector) coming from the Container Stacker 2 to the CN7 connector on the Finisher main P/K (Connection 2 on the below figure).

8)Turn on the No. 5 and 8 and turn off the No. 2 of the SW1 mounted on the CPXXX P/K of the Engine.

[Note] Put the cable through the opening “A” of the Container Stacker 2 for connection.





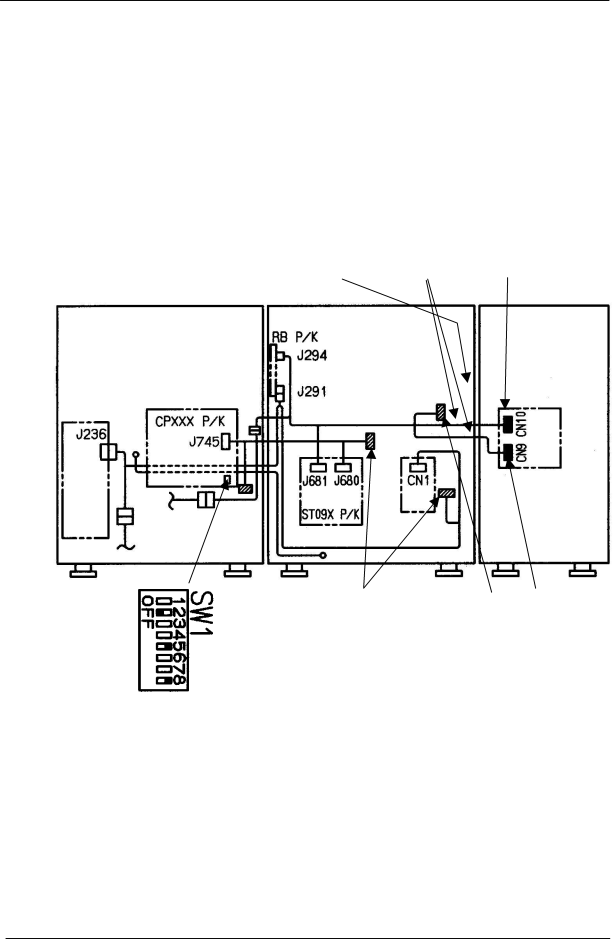

Connection 2

Opening “A”

AF cable

(20 pin black)

Printer

Container Stacker 2





Standard Finisher

(W/ Through path)



























Disconnection 1

Disconnection 2

Connection 1

(4 pin white)

(2 pin white)

(4 pin white)

9) Install the Rear Covers of the Printer, Container Stacker 2 and Finisher.
