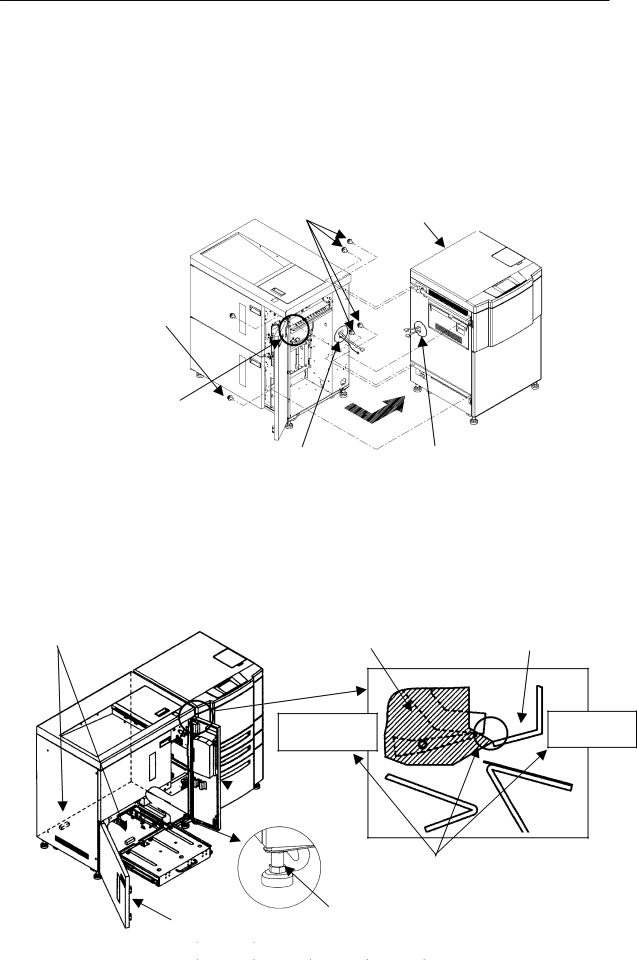

12)Attach the Container Stacker to the Engine.

(1)Pass the AC Relay cable (2-pin white connector) and FNS IF cable (20-pin black connector) through opening “A” in the Engine, and then through opening “B” in the Container Stacker.

(2)Pass the CST FG cable and CSTAC cable (2-pin white connector) through opening “B” in the Container Stacker, and then through opening “A” in the engine.

(3)Attach the Engine to the Container Stacker (6 M4x12 screws). Important: Do not tighten the screws all the way.

M4x12 Screws

Engine



M4x12

Screws

Frame projection part

Opening ”B”

Opening ”A”





13)In order to adjust the height of Container stacker, turn 180 degrees each of four leveling bolts, and satisfy the following conditions, and bolt the screw of a temporary tight.

(1)When the Front cover R is shut and it looks into the space between the Printer and Container stacker from front side, the height of the Frame’s projection of Container stacker and the Guide plate U’s projection is the same.

[Note] As for the way of opening front cover L, refer to the item 3.3.

Level Meter

Stacker frame

Guide plate U







Projection

Projection

Front cover R

Same height

Connection part Details

Front cover L



Leveling bolts









































II

L

001
