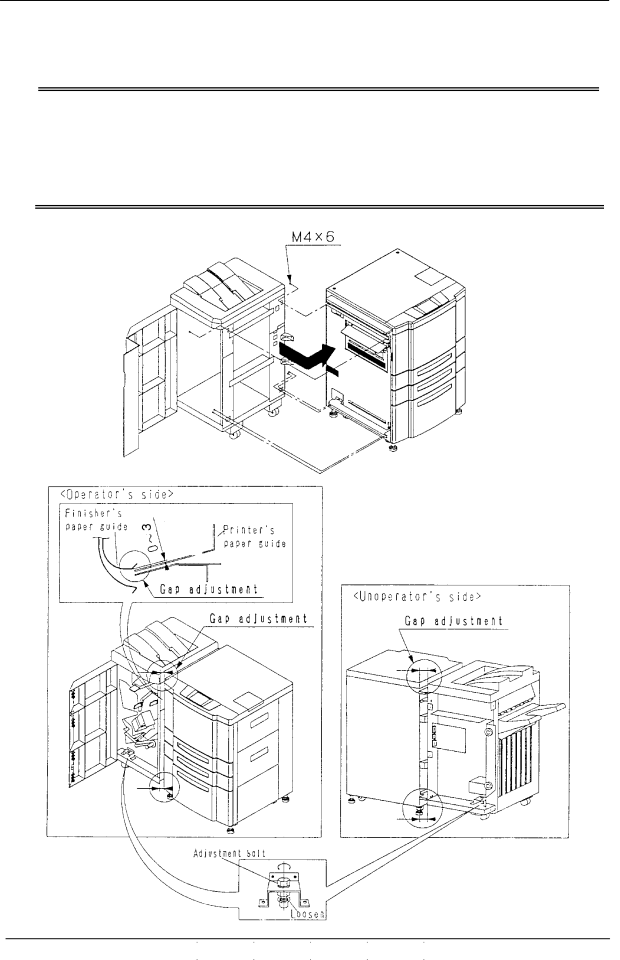

[FS-104H] (No RoHS Compliance Unit) 9) Install the Finisher to the Printer.

CAUTION

Adjust the gap between Finisher and Printer by turning the adjustment bolt of Finisher.

(1)Adjust the gap between Finisher’s paper guide and Printer’s paper guide become 0 to 3mm.

(2)Adjust the gap between Finisher and Printer is equal from the top through the bottom.
