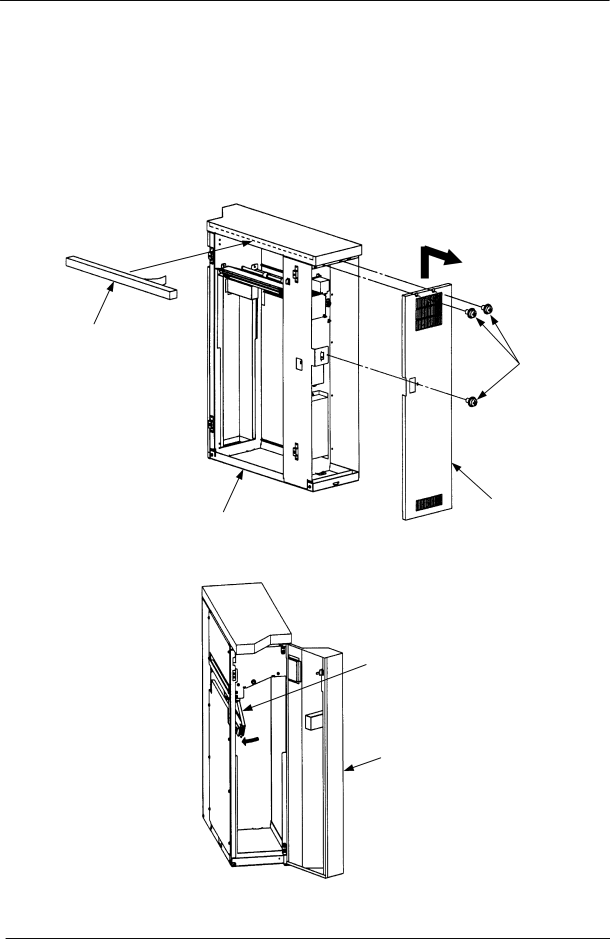

18)Releasing the Rear Cover of the Transit Pass Unit Type DDP.

(1)Unscrew the three M4 Screws.

(2)Unhook the lower hook of the Rear Cover and release the Rear Cover.

(3)(Release the Rear Cover by lifting up and pulling forward.)

19)Install the Block Sponge to the Transit Pass Unit Type DDP.

Block Sponge

M4x8 Screw

Rear Cover

Transit Pass Unit Type DDP

20) Open the Front Cover and Lower paper guide.

Lower paper guide

Front Cover
