WARNING

1)Unplug the Power Supply Cable prior to connecting.

2)Be careful not to have other personnel plug in the power cable while performing the connecting.

3)Be sure to use power supply cable which complies with the following specification :

Power plug rating ; Min. AC 250V, Min. 15A(2-Pole, 3-Wire, Grounded) 6-15P UL Listed, CSACertified in North America Type CA, Conformed to IEC 950 in Europe

Power cable rating ; Min. AC 250V, Min. 15A

Type SJT or SVT, UL Listed, CSA Certified in North America

Conformed to IEC 950 in Europe

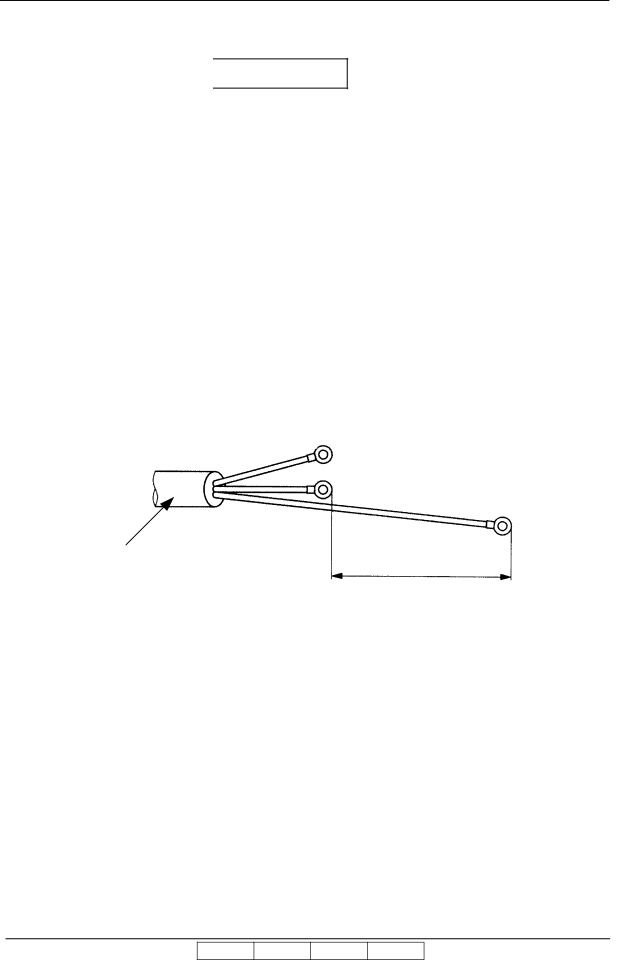

4)Use the Power Supply Cable which is approximately 50 mm longer for the FG. The cable should be designed as below, so the FG power cable remains connected if the other cables are accidentally disconnected.

L

N

FG

Power Cable

Approx. 50mm

5)Make sure that the power cables are connected to the correct terminals (“L”, “N” ) on the power plug and Terminal Block. ( FG power cable is connected to chassis.)

6)The socket-outlet shall be installed near the printer and be easily accessible.
