Emerson ATCA-S201 instruction

RTM-ATCA-SXXX Overview

‐

Emerson ATCA-S201

+

iSCSI

nfs

+

smb

+

Shares

+

‐

LVM2

 LVM2 Configuration

+

MD RAID



+

Hardware RAID

Physical Disks

+

+

Maintenance

StorBlade99 ATCA-S201 Available Physical Disks

Disk Name

Volume

State

Capacity

File

Type

Vendor

Model

Rev

Select

Group

/dev/sda

‐none‐

Offline

140205(MBytes)

Raw

Unknown

HITACHI

HUC101414CSS300

A410

/dev/sdb

‐none‐

Offline

70136(MBytes)

Raw

Unknown

FUJITSU

MAY2073RC

0103

/dev/sdc

‐none‐

Offline

70008(MBytes)

Raw

Unknown

LSILOGIC

Logical Volume

3000



Select 1 or more disks for Volume Group

vga

ˇ

Submit

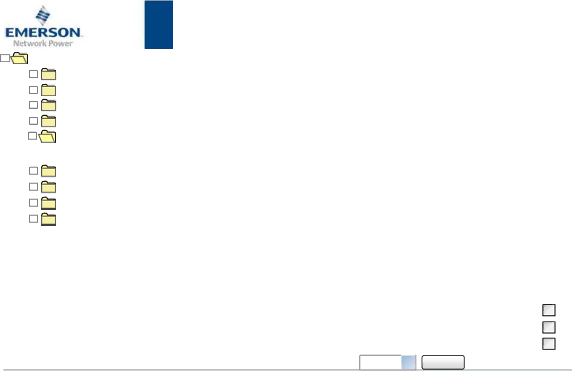

Figure 23 HTML tool, Emerson ATCA-S201 LVM2 Configuration

Follow these instructions to create a new volume group

Step 2. Click the ‘Select’ box to choose which disks will be assigned to the new volume group.

Step 3. Use drop down menu to specify volume group name. (vga,vgb, etc)

Step 4. Click the ‘Submit’ button

6806800H62B ATCA‐S201 Installation and Use Guide

71

Image 81

Emerson ATCA-S201 manual  Follow these instructions to create a new volume group
