Chapter 4

Configure and use 802.11 wireless profiles

The device includes an 802.11 wireless profile switch, so you can store settings for up to three 802.11 computers or networks. This allows you to easily move the device from home to office or between any three wireless network environments.

You can modify these wireless profiles using the Toolbox (Windows) or the HP Network Setup Tool (Mac OS). For more information, see Toolbox (Windows) and Network Printer Setup Utility (Mac OS).

NOTE: You can modify these wireless profiles using the Toolbox (Windows) or the HP Network Setup Tool (Mac OS). For more information, see Toolbox (Windows) and Network Printer Setup Utility (Mac OS).

After configuring a wireless profile, you can print a wireless configuration page to get a list of the profile settings and to ensure they have been properly set. For more information, see Understand the device information pages.

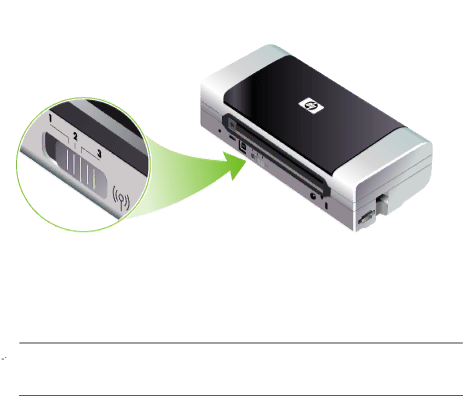

After you have configured more than one of the wireless profiles, you can use the wireless profile switch on the device to switch between the different profiles. For more information, see Use the wireless profile switch.

The Wireless Profile Configuration Utility (Windows) allows you to configure several devices with the same settings. For more information, see Configure multiple printers for 802.11 (Windows).

This section contains the following topics:

•To configure 802.11 wireless profiles (Windows)

•To configure 802.11 wireless profiles (Mac OS)

To configure 802.11 wireless profiles (Windows)

This section assumes that the Toolbox is communicating with the device.

56 Configure and manage
