IBM ibm Ethernet Lines Tailgate

FRU Exchange

Ethernet Lines Tailgate

Location: 01Q

C0 D0

J1 J1

15 Pin

ESS3 ESS4

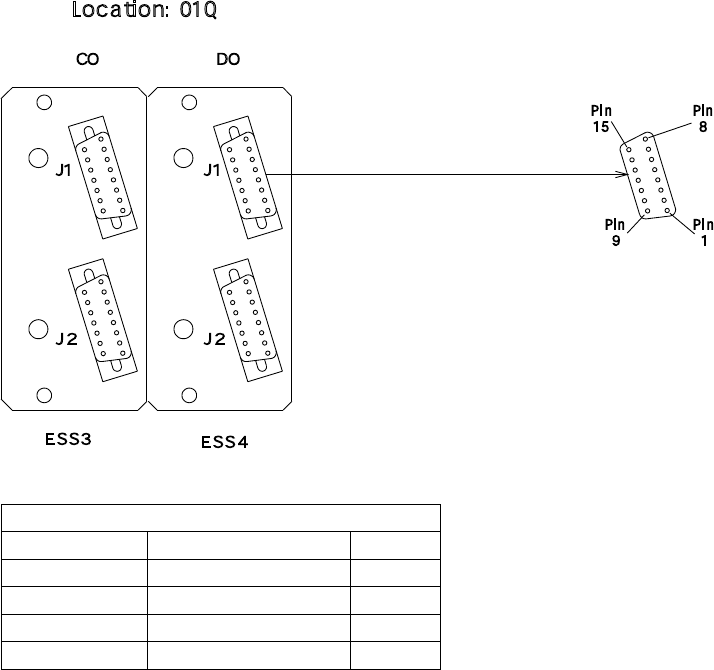

Figure 4-24. 3745 Ethernet Lines Tailgate

Table 4-5. 3745 Ethernet Line Locations

Line Location ELA

1060 01Q-C0J1 3

1061 01Q-C0J2 3

1062 01Q-D0J1 4

1063 01Q-D0J2 4

4-22 3745 Models 130 to 17A: MIP
