IBM ibm Token-Ring Tailgate

FRU Exchange

Token-Ring Tailgate

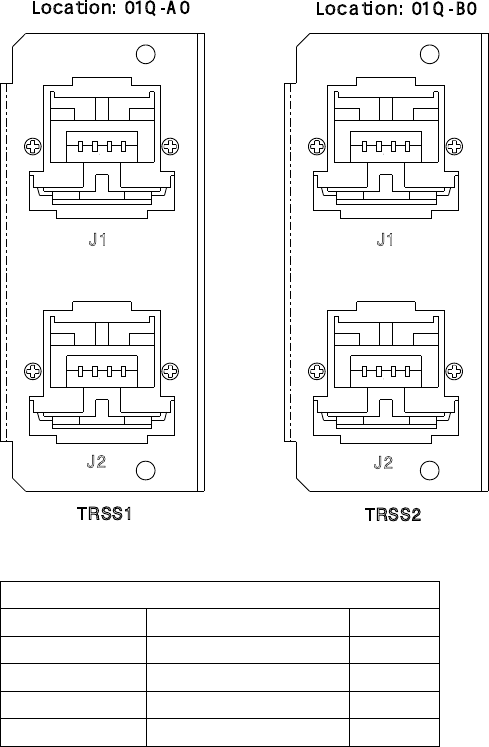

Location: 01Q-A0 Location: 01Q-B0

Figure 4-26. 3745 Token-Ring Tailgate

Table 4-7. 3745 Token-ring Line Locations

Line Location TRA

1088 01Q-A0J1 1

1089 01Q-A0J2 1

1090 01Q-B0J1 2

1091 01Q-B0J2 2

4-24 3745 Models 130 to 17A: MIP
