Regular charging, Rapid charging with the BC-135

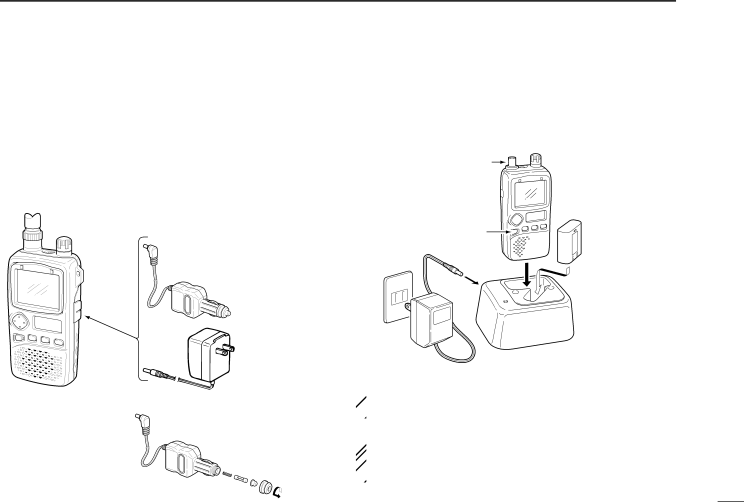

◊Regular charging

qAttach the battery pack to the receiver. w Be sure to turn the receiver power OFF.

e Connect the AC adapter (BC-136A/D*) or optional cable (CP-18A/E) as shown below.

*Not supplied with some versions.

rRemove any cables from the [DC 6V] jack.

•Charging periods: 15 hours (w/BP-206)

BATTERY CHARGING 14

◊Rapid charging with the BC-135

The optional BC-135 provides rapid charging of battery packs.

•Charging periods: 2.5 hours (w/BP-206)

Shorten or remove the antenna.

IC-R3 with BP-206

[DC 6V]

BE SURE to remove CP-18A/E when charging is finished.

CP-18A/E (optional)

Turn power OFF.	Check the
	orientation.

BC-135

BC-136A/D

◊CP-18A/E fuse

replacementCP-18A/E

Fuse 5 A

CAUTION: Shorten or remove the telescoping antenna be- fore charging to prevent the receiver from overturning.

If the charge indicator flashes orange, there may be a

problem with the battery pack (or charger). Re-insert the battery pack or contact your dealer.
