Diagnostics and Troubleshooting

Calibration Troubleshooting

This section describes the problems that you may occasionally have when using the KODAK Device Calibration Software or the Calibration Software for the KODAK PROFESSIONAL LED II Printer. It also identifies the probable causes for these problems and provides solutions for correcting these problems.

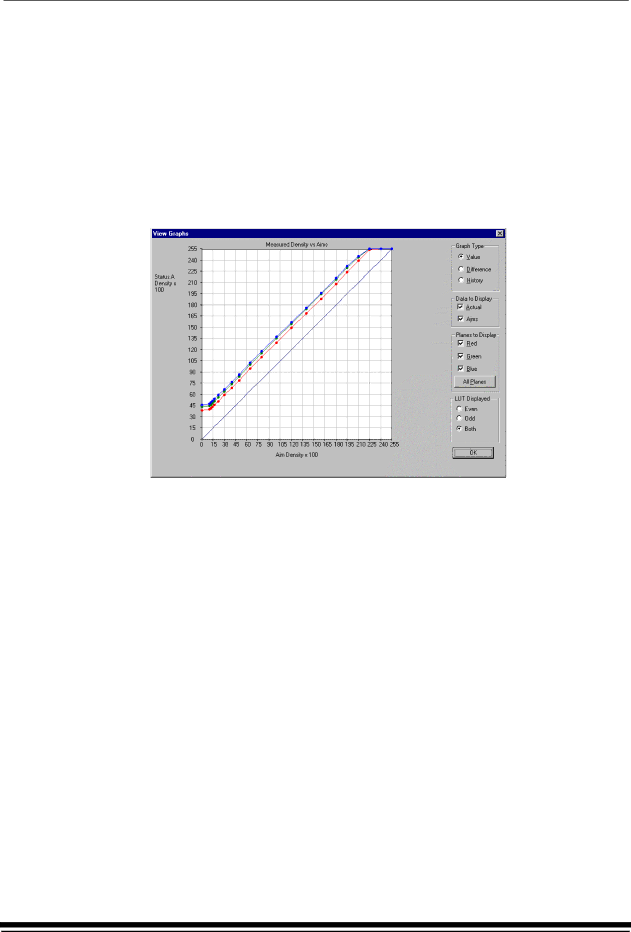

Calibration Graph

The graph below is an indication that the calibration performed was out of tolerance.

This may be result from invalid densitometer readings. It is necessary to perform another calibration cycle if you see a graph that looks like the one above.

Numbered Error Messages

Error

Error Code /Status

Possible Cause/Subsystem

Possible Solution

Code

Message













1

The following file is

The system is trying to access a

Close any other applications that



locked:_filename_.

file that is currently in use.

may be accessing the file.









2

The following file is

The system is trying to access a

Change the protections on the file



protected:_filename_.

file that is protected.

to grant access to the user.









3

The following file was not

The system was trying to access

Verify that the filename on one of



found:_filename_.

a file that it could not find.

the configuration dialog windows is







correct.









4

Error:_oserror_occurred

An operating system error

• Rerun the application.



during operation:_operation_

occurred.

• Reboot the operating system



on file:_filename_.













5

The following file is in an

The file does not conform to the

Verify the file format.



incorrect format:_filename_.

application specification.











5-14

September 2000

Page 84
Image 84
