Replacing 15.0 Inch Sharp fluorescent lamp XGA | Toshiba A40

4.26 Fluorescent lamp			4 Replacement Procedures

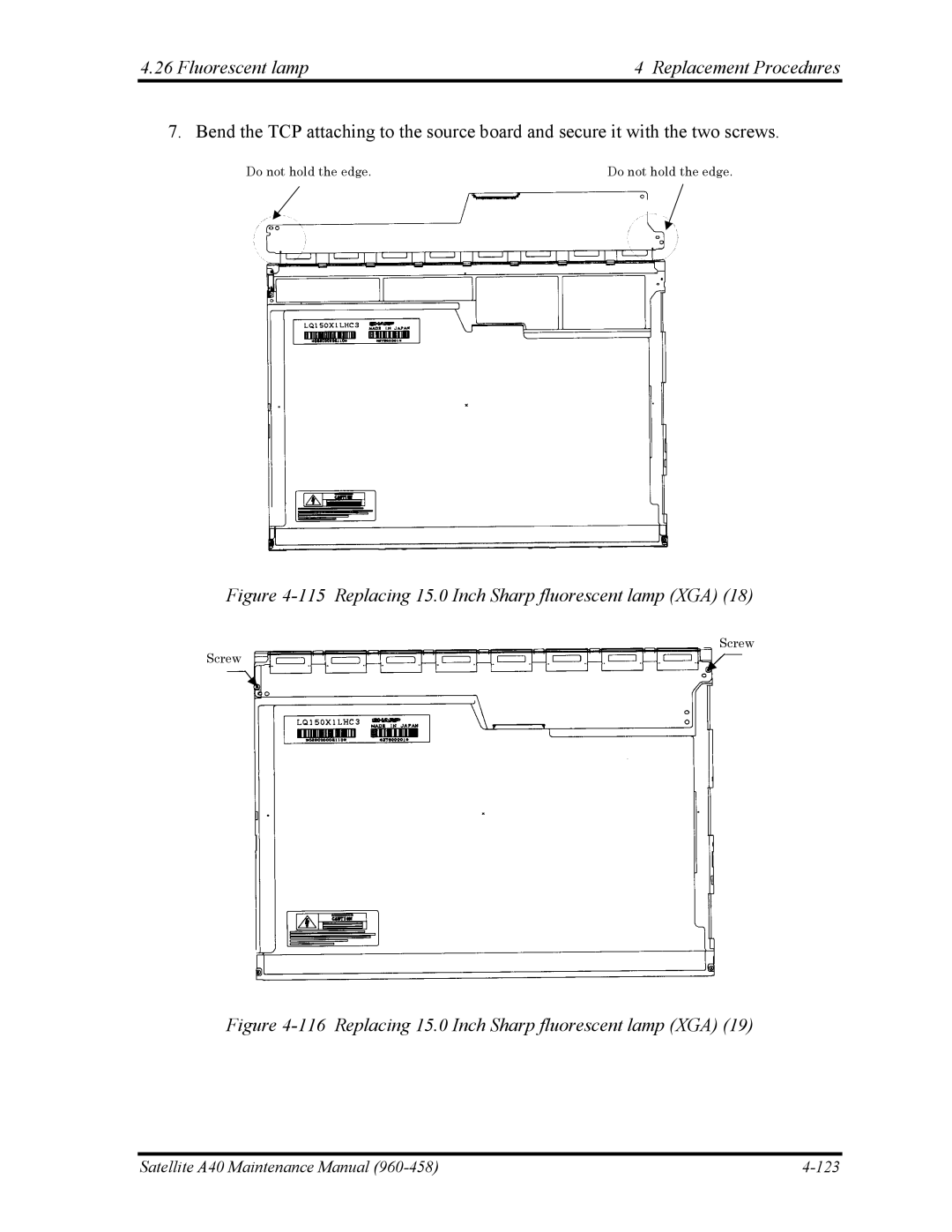

7. Bend the TCP attaching to the source board and secure it with the two screws.

	Do not hold the edge.		Do not hold the edge.

Figure 4-115 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (18)

Screw

Screw

Figure 4-116 Replacing 15.0 Inch Sharp fluorescent lamp (XGA) (19)

Satellite A40 Maintenance Manual (960-458)

4-123

Image 331
