58CHAPTER 6: ADVANCED CONFIGURATION

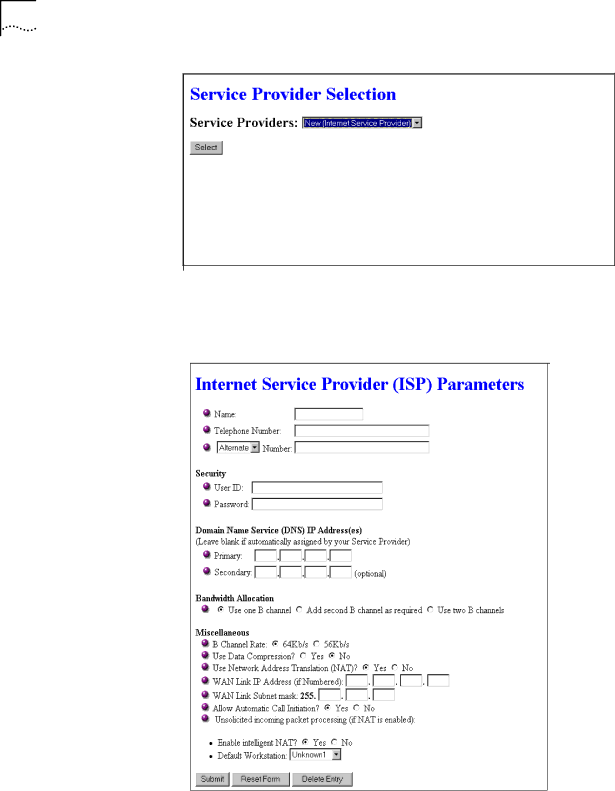

Figure 42 ISP Service Provider Selection Window

3Click Select.

The Internet Service Provider Parameters window appears.

Figure 43 ISP Parameters Window

4In the Name field, enter a name for this remote destination, such as the name of the ISP. You may want to add an additional description if you have more than one account with this particular ISP.

5In the Telephone Number 1 field, enter the telephone number you must dial in order to reach your ISP.

Image 58
