APPENDIX E: PRINT HEAD CLEANING

Paper dust on the heating elements may lower the print quality. In this case, clean the print head as follows:

1)Open the printer cover.

2)Clean the thermal elements of the print head using a cotton swab moistened with alcohol solvent (ethanol, methanol, IPA).

NOTES: • Do not touch the print head thermal elements.

•Do not scratch the print head.

3)Insert a paper roll and close the print head.

NOTE: The print head becomes very hot just after printing and is very dangerous. Be sure to allow the print head to cool down (after printing) before cleaning it. Also, be sure to turn off the printer power before cleaning the print head.

Radiation plate

Head	Thermal element

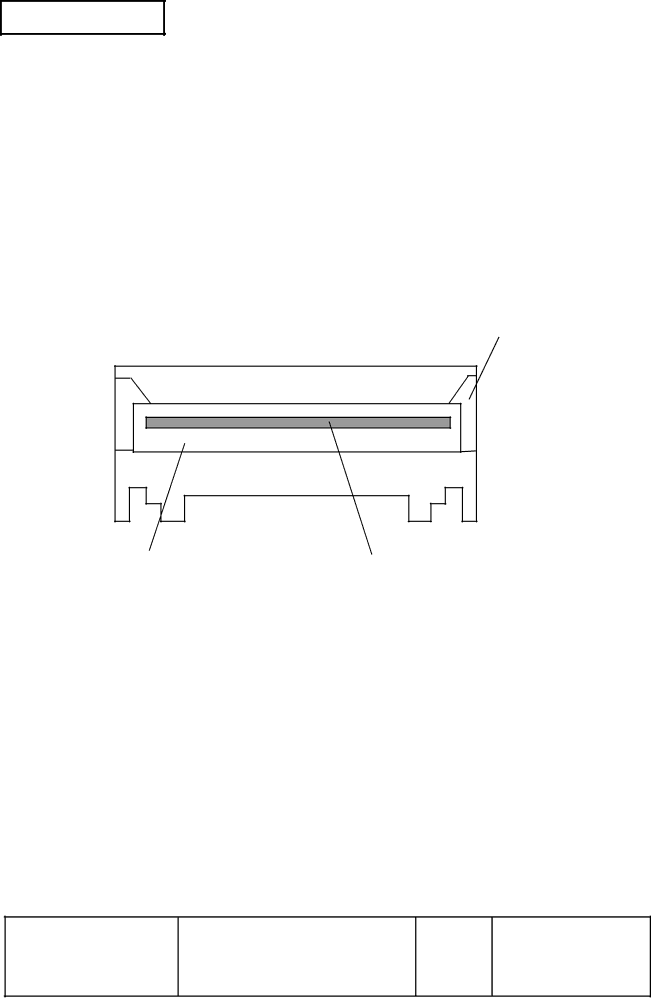

Figure E.1 Print Head Thermal Elements

(*)Depending on the paper roll used, paper dust may stick to the platen roller and paper roll end sensor. To remove the paper dust, clean the platen roller and paper roll end sensor with a cotton swab moistened with water.
