Changing Your Workstation’s Hardware Conﬁguration

Installing Storage Devices

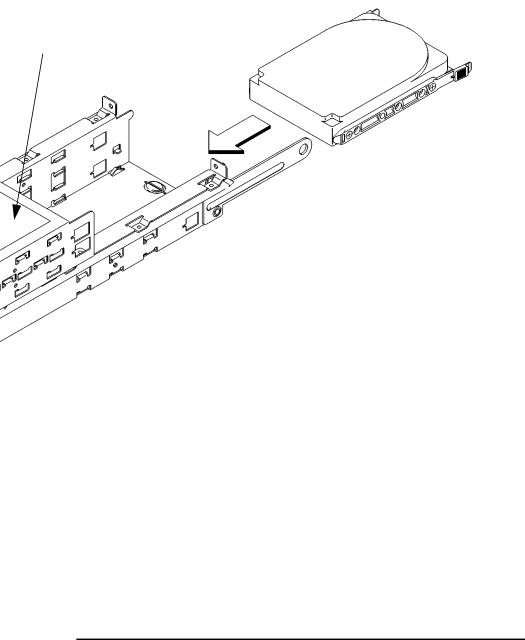

4From the rear of the storage tray, line up the disk slides on the hard disk drive with the position 3 or position 4 slots in the storage tray chassis and slide it into place, as shown in Figure 32.

Cable Routing Label

Figure 32

Installing a Hard Disk Drive

5Push the storage device in until the locking tabs snap into place.

6Connect the fast, wide SCSI data cable and the power cable to the drive.

132

Image 148

HP C100/110 manual Installing a Hard Disk Drive
