Changing Your Workstation’s Hardware Conﬁguration

Installing Storage Devices

Replacing the Storage Tray

1Slide the storage tray assembly into the system unit chassis, as shown in Figure 34.

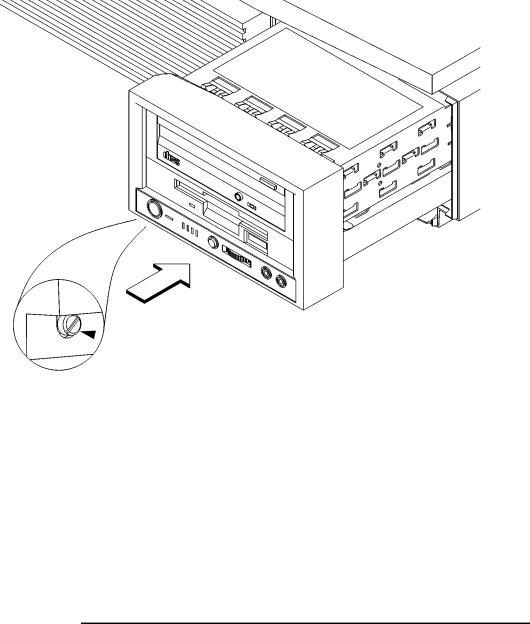

Retaining Screw

Figure 34

Installing the Storage Tray Assembly

2Tighten the storage tray retaining screw, as shown in Figure 34.

3Reconnect the power cords to the system unit, the monitor and any peripherals. Connect the power cords to the ac wall outlets.

4Power on any peripherals, the monitor, and the system unit.

134
