detent for 35 mm

detent for 46 mm

detent for 120/220

detent for 70 mm

Using the Long Roll Accessory

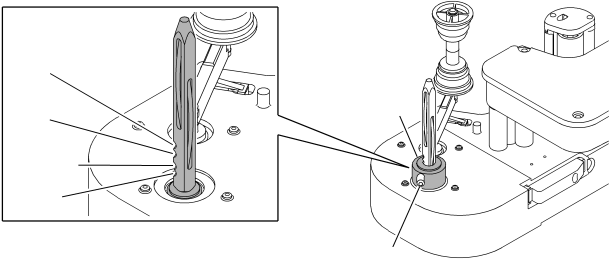

Adjusting the Core Locator Height on the Spindle

The spindles on the Long Roll Accessory have core locators to accommodate different film sizes.

core locator

button

P192_1548BCA

P192_1548BC

Push and hold the button to release and position the core locator at the correct detent. Release the button at the detent you want. The detent positions are:

35 mm (top)

46 mm

120/220 (62 mm)

70 mm (bottom; closest to Long Roll Accessory)

August 2001

D-15
