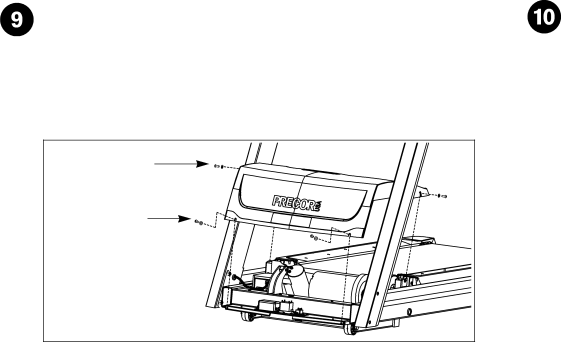

Replace the hood and secure it.
Important: Use your fingers to properly align and thread the four hood fasteners. Wrench tighten the two side fasteners before wrench tightening the two fasteners that secure the front of the hood.
Secure the hood using four buttonhead screws (E) and four washers (B).
Start with the side fasteners and then wrench tighten all four fasteners.
Side fasteners |
Front fasteners |
Tighten all mounting screws.
1.Start at the base and alternately tighten the eight fasteners that secure the upright supports to the base assembly.
2.Wrench tighten the six screws that secure the display console to the upright supports.
CAUTION: Be aware of the handrail extensions when you are working around the front of the unit. It is easy to bump your head or sustain other injuries if you ignore the location of the handrail extensions.
M9.57 | 6 |
