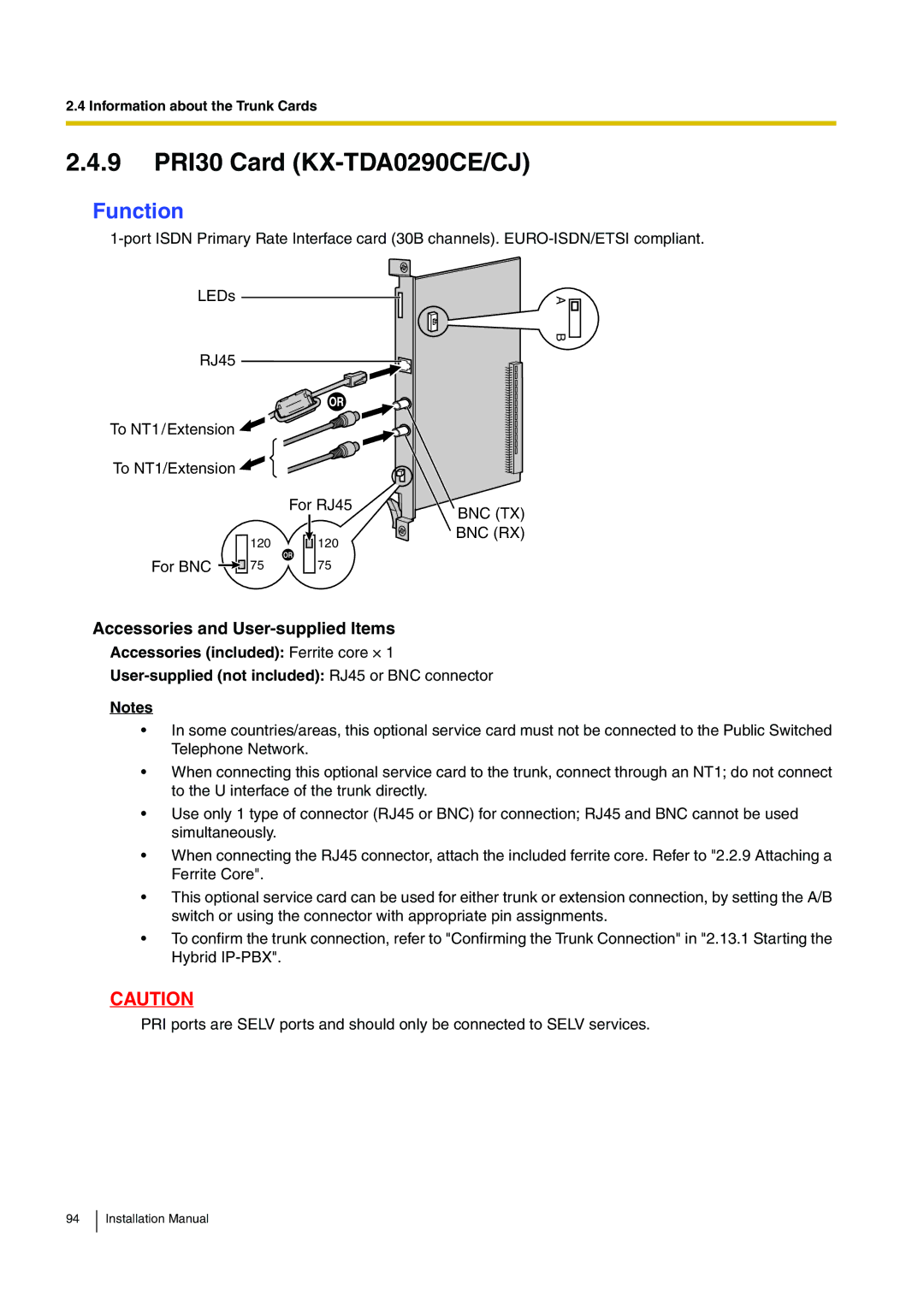

2.4 Information about the Trunk Cards

BNC (coaxial) Connector (RX)



No.

Signal Name

Level [V]

Function

1

1

RX-

(-)

Receive data (-)

2

2

RX+

(+)

Receive data (+)

LED Indications

Indication

Colour

Description







CARD STATUS

Green/Red

Card status indication





OFF: Power Off





• Green ON: Normal (all ports are idle)





• Green Flashing (60 times per minute): Normal (a port is in use)





• Red ON: Fault (includes reset)





• Red Flashing (60 times per minute): Out of Service







SYNC-ERR

Red

Non-synchronisation status indication





OFF: Normal





• ON: Out of synchronisation







RAI

Red

RAI signal status indication





OFF: Normal





• ON: Alarm (Clock Slave)





• Flashing (60 times per minute): Alarm (Clock Master)







AIS

Red

AIS status indication





OFF: Normal





ON: Alarm







SYNC

Green

Synchronisation status indication





OFF: Not synchronised





ON: Synchronised





• Flashing (60 times per minute): Synchronised (Clock Master)







D-LINK

Green

Data link status indication





OFF: Not established





ON: Established









96

Installation Manual
