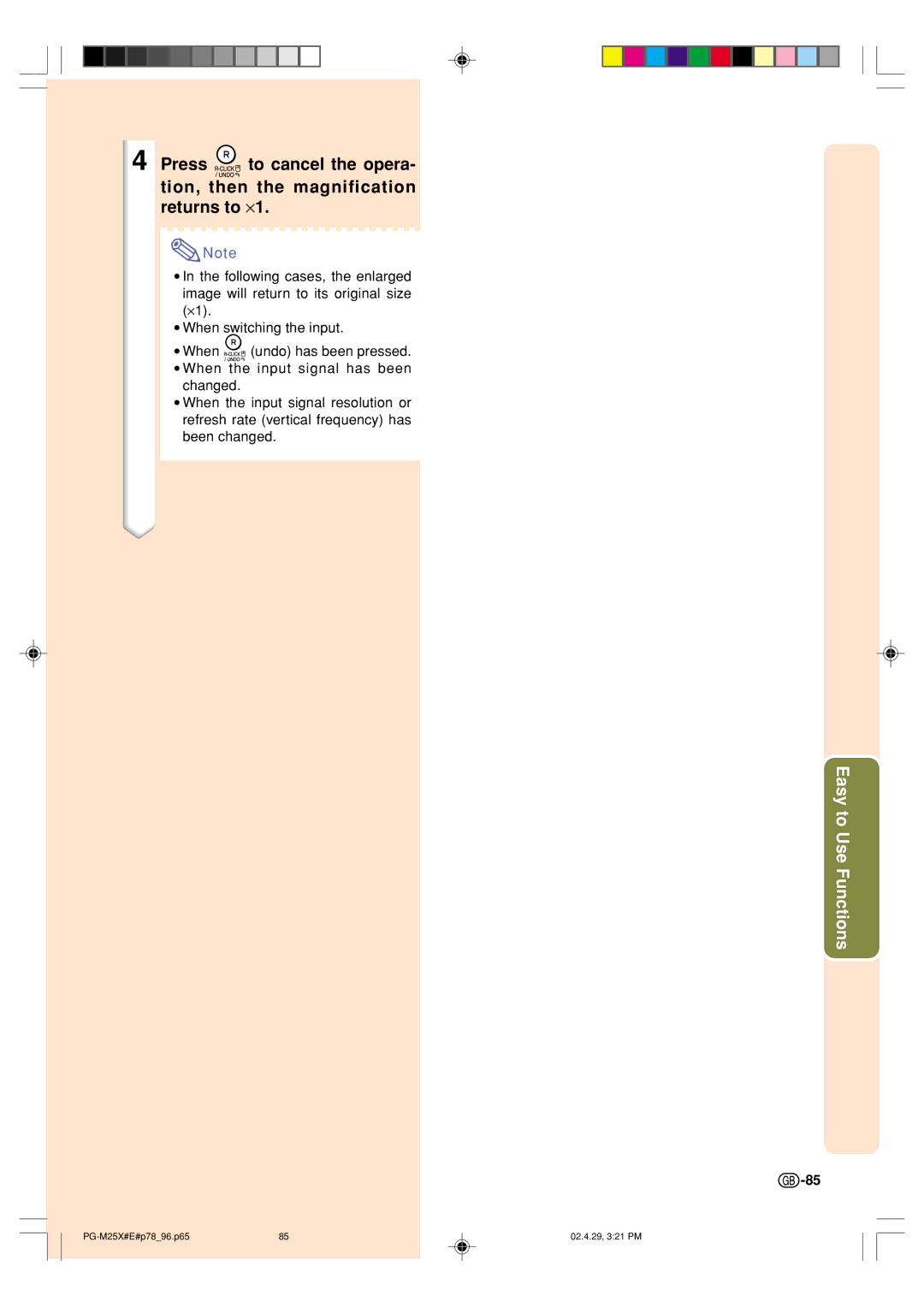

4 Press to cancel the opera- tion, then the magnification returns to ⋅ 1.

Note

•In the following cases, the enlarged

image will return to its original size (⋅ 1).

•When switching the input.

•When (undo) has been pressed.

•When the input signal has been changed.

•When the input signal resolution or refresh rate (vertical frequency) has been changed.

Easy to

Use Functions

-85
