Chapter 3 : Creating a Project

To associate a label with your 123 Print project,

4Click the button at the bottom of the Labels List window

Each time you add a label, 123 Print assigns a sequence number to the label. This system assigned number is displayed in the Labels List window in the left most column called #. This number determines the sequence order in which the labels are displayed on the Select Label Screen (see Section 3.2.2 – Select Label Screen).

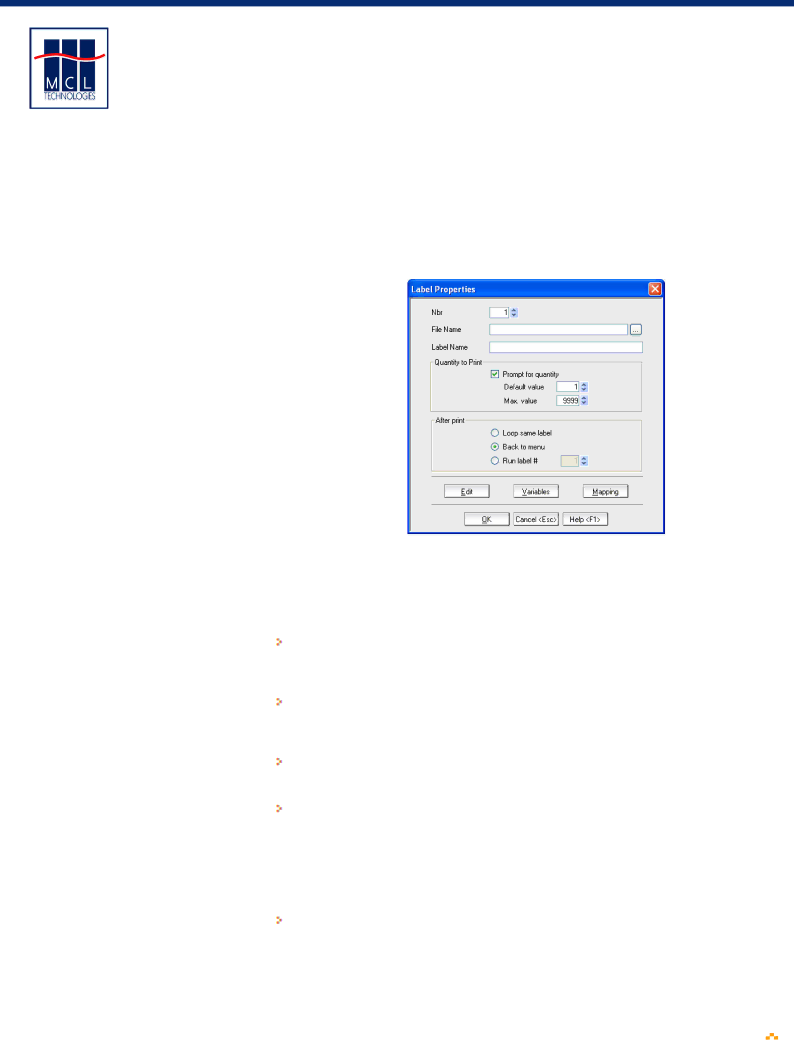

When you Add a label, the Label Properties screen is displayed as shown here

Label Properties

The Label Properties screen allows you to associate a given label to



your project. The Label Properties screen is also the entry point to



create a label program.



5 Set the label properties as appropriate for the given label:



Nbr

Enter the number you wish to assign to the label





in your 123 Print project. This number is displayed





on the Select Label Screen when the user is





choosing which label to print for a given operation



File Name

Enter the path and name or browse to search for





the label you want to add to your project. Valid





file types are *.btw, *.dpl and *.txt (if the *.txt





file contains DPL code)



Label Name

Assign a name to this label. This is displayed on





the Select Label screen when the user is choosing





which label to print for a given operation.



Quantity to

If you want the user to enter a quantity, check the



Print

Prompt for quantity checkbox. Assign a default





value and maximum value to help the user. If you





want to set a fixed quantity to print with no user





prompting, uncheck the Prompt for quantity





checkbox and enter the fixed value in the default





value box. These entries are used on the Quantity





to Print screen as described in Section 3.2.3.



After Print

Setup what you want to do after the label has





been printed. You can





ƒ Loop on the same label. This returns you





to the first screen of the label program





ƒ Return to the Select Label screen





ƒ Run a different label. Identify a label to





print next, automatically, without user





input. Reference it by its Nbr number.
