Chapter 3 : Creating a Project

12Click on the User Local tab

13Select the Variable [A1] Product_Name.

14Click OK

In order for the user to be able to see this screen and read the displayed data, you must display the screen long enough for the user to be able to read it. To do so, set the Display Time option. This will display the screen momentarily only—for the period you set (in seconds).

15Set the Display Time to 2 seconds

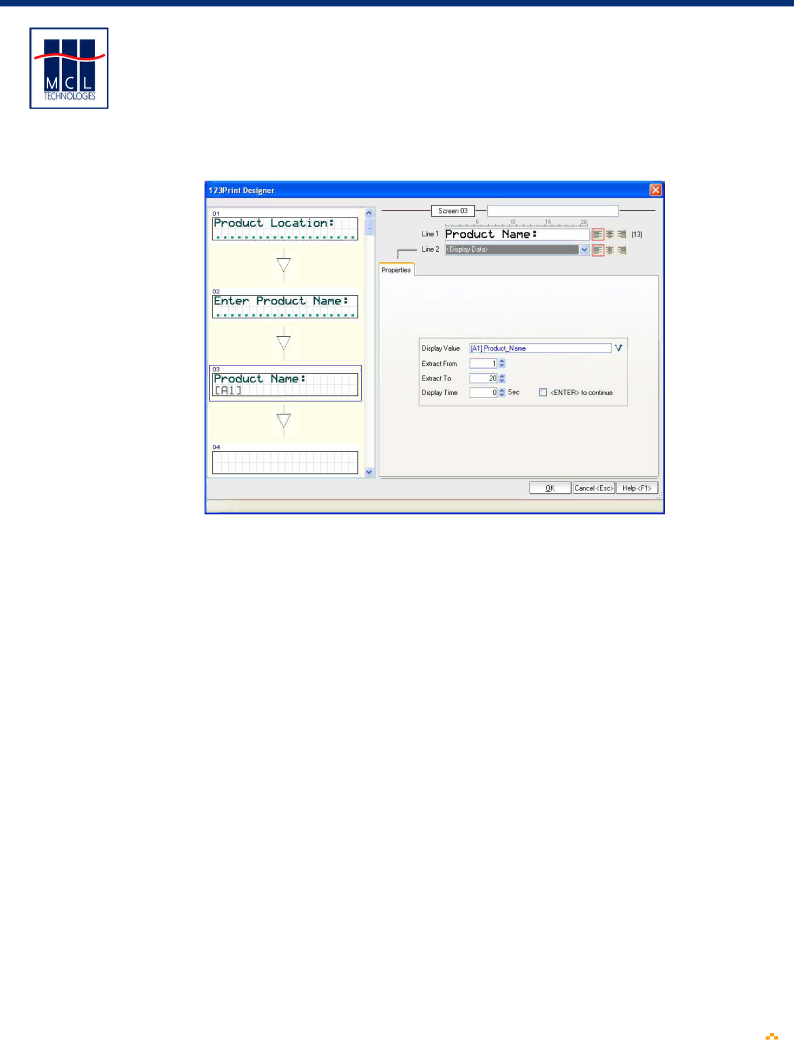

When completed, the properties for Screen 3 are as shown above.

Continuing with the Warehouse Shelving example, create a fourth screen to ask the user to confirm, by entering Yes or No, the Product Name displayed on the previous screen. The choice made here by the user will determine the next step in the program.

16Type the text Confirm Name: Y/N? on Line 1

17Select the External Keyboard on Line 2.

18Create a Result Variable using the next available user local variable—in this case, A2. Call this Variable Confirmation as shown below
