Chapter 3 : Creating a Project

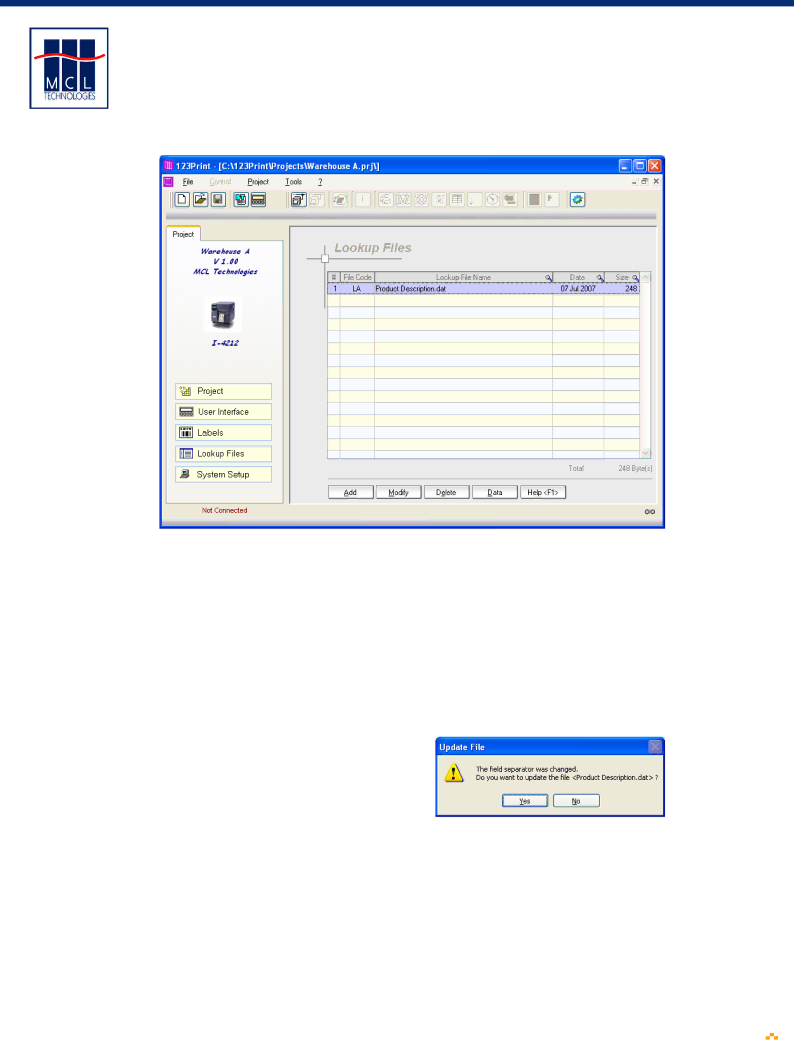

The Lookup Files window is displayed with an entry for the Product Description lookup file being created.

You have now created a Lookup File from a data source. The resulting

Product Description.dat file for this example looks like this:

1234567890123DMX A-4212	Datamax
2345678901234DMX I-4212	Datamax
3456789012345DMX M-4208	Datamax
4567890123456DMX A-4210	Datamax

If you decide you would like a different separator, select the desired separator in the Lookup Files Properties window and click OK. This example changes the separator to a semi-colon.

You are prompted to confirm

16Click Yes

The revised Product Description.dat file now looks like the following

1234567890123;DMX A-4212	;Datamax
2345678901234;DMX I-4212	;Datamax
3456789012345;DMX M-4208	;Datamax
4567890123456;DMX A-4210	;Datamax

If necessary, you can modify the data in the Lookup File. (Please see

Section 3.4.4 – Edit Lookup File Data

October 2007

Page 99
