Chapter 3 : Creating a Project

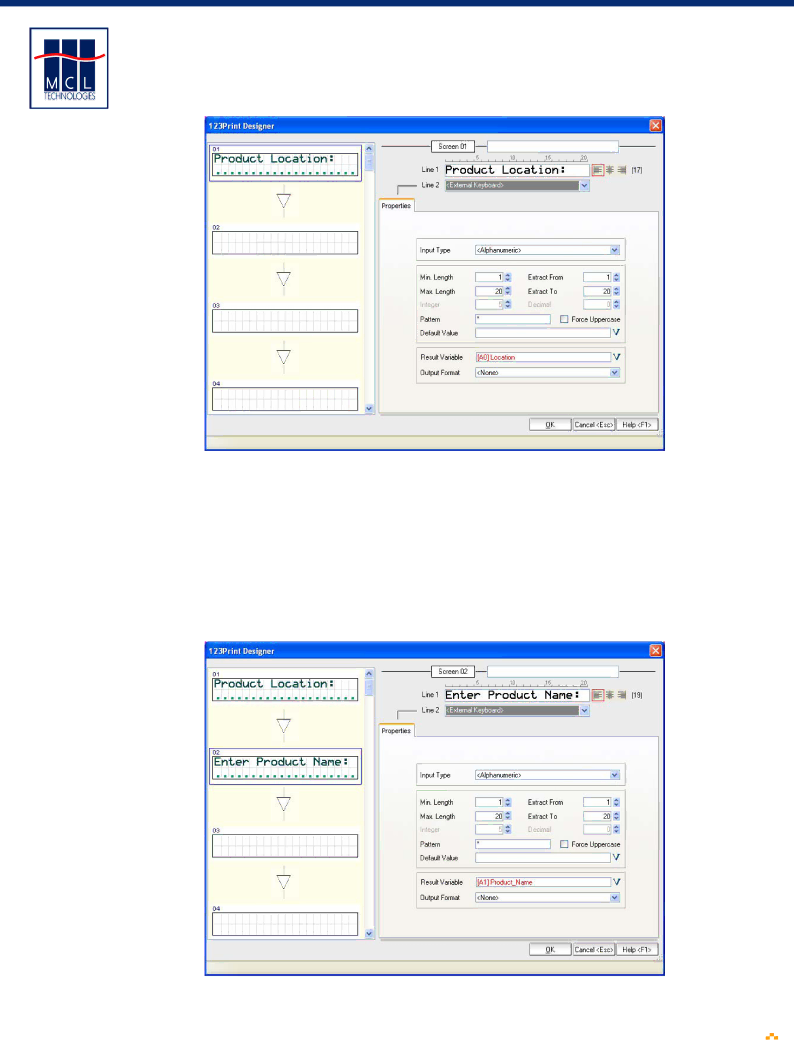

Notice that the Result Variable of the Variable you just created:

field has now been filled with the name [A0] Location.

You have now completed the first prompt screen of your label program. For this Warehouse Shelving example, repeat the above steps to create a second prompt screen— Enter Product Name:. Create a Resultant Variable [A1] Product_Name as the storage location for the user input for this screen prompt. This prompt will allow the user to enter the Product Name to be printed on the given label.

After creating the Enter Product Name: screen prompt, the 123Print Designer window looks as shown here

www.mcl-collection.com

October 2007

Page 61
