Chapter 3 : Creating a Project

Returning to the Warehouse Shelving example started in Section 3.3.2 - Variables, the following describes how the LocationMCL2.btw label would be mapped using the variables created in the example.

2Double-click on the Replace By field for the first entry in the Mapping table – this element is the first of the two Barcodes on the example label

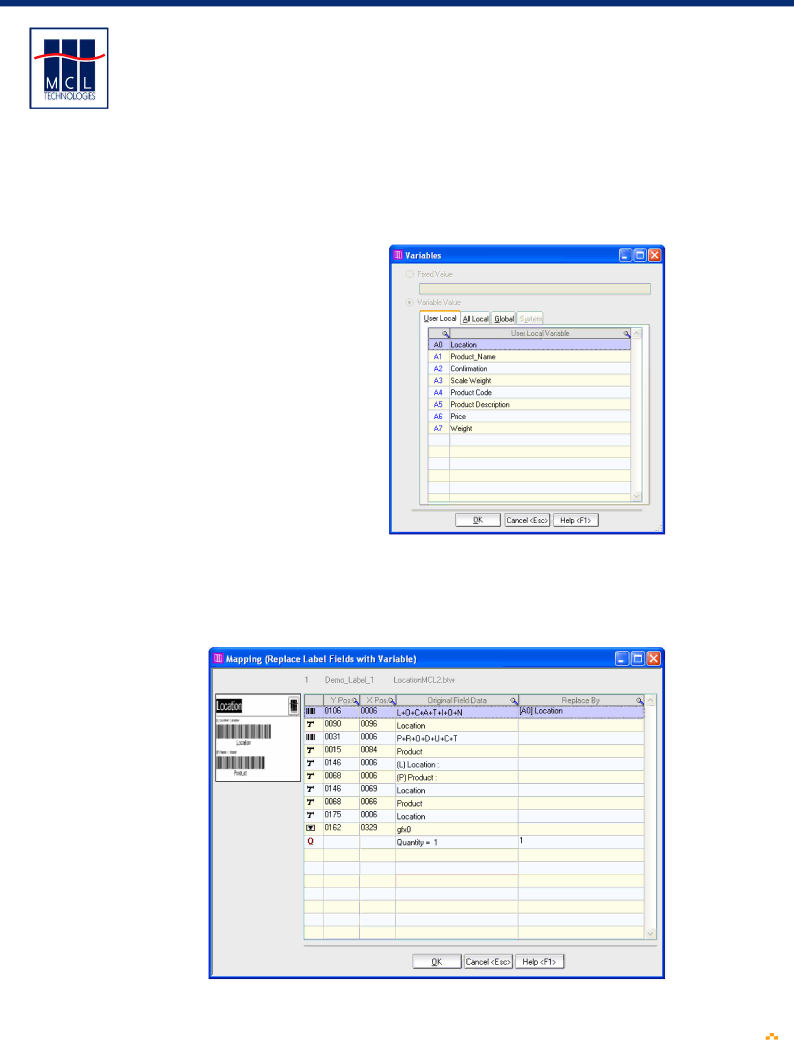

The Variables list is displayed as shown here

3Select the Location variable ( [A0] Location )

4Click OK

The variable [A0] Location is mapped to the first barcode as shown below. When the label is printed, the contents of the [A0] Location variable will be printed as a barcode where the barcode “location” was printed in the static label.

5Double-click on the Replace By field for the second entry in the Mapping table – the Human Readable beneath the first Barcode
